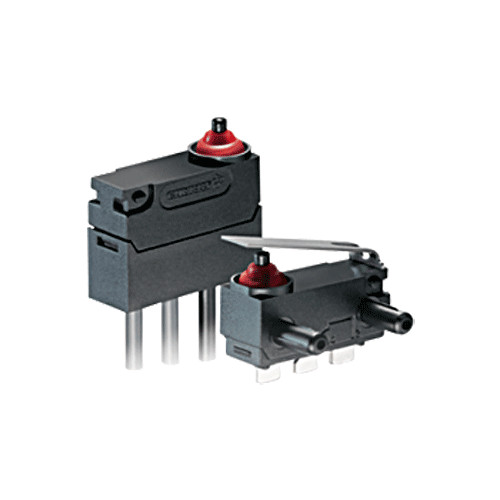

ZF Electronics Cherrry DK-Series Snap Action Sealed sub-sub Miniature Switch Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Cherry IP65 Sealed Snap Action sub-sub-miniature switch. 5mA up to 2A at 12VDC

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • Sealed sub-subminiature switch IP6K5 sealed (IP6K7 on request)
  • Switching current from 5 mA up to 2 A at 12 VDC
  • Actuation possible vertically or with auxiliary actuator
  • High contact stability thanks to AuAg crosspoint contacts
  • Operating temperature up to 105 °C
  • Mechanical life min. 500,000 actuations
  • Wide variety of terminal options, including leads

Products available to purchase

 SKUVendorName
CSDK1G-TRD1 ZF ElectronicsDK-Series 2A 12V SPDT PCB R Lever
