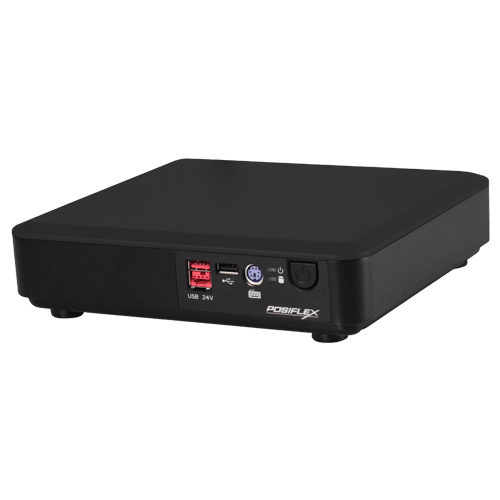

POSIFLEX TX-4200E Fan-less POS Terminal ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The TX-4200E POS box is designed as a slim type of high performance Fan-less PC with all the capabilities to meet the needs of highly demanding POS applications or other industrial applications. With dual VGA ports and a 24V Powered USB port the TX-4200E is suitable for all general retail market segments.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fanless PC POS System
  • CedarView Dual core D2550 1.86 Ghz CPU
  • 32 GB SSD or larger (optional HDD)
  • 2 GB DDR3 RAM expandable to 4GB
  • Aluminium die-cast housing for efficient cooling
  • Powered Serial ports
  • Dual VGA and HDMI Port
  • Mini PCIe slot
  • Optional Touch monitors, Pole displays available
NameSizeDownload
Brochure357kb tx4200_tx4200e_brochure.pdf
User Manual597kb tx4200-4200e-4200r_um.pdf

Products available to purchase

 SKUVendorName
PFPP9000URB POSIFLEXAURA 9000 USB & RS232 interface Thermal Printer
PFLM3115BF POSIFLEX15" Bezelfree LCD Monitor on Gen7 Base Black
PFTM3115CB-U POSIFLEX15" LCD PCAP Touch Monitor Black USB
PFCR4100B POSIFLEXCR-4100 Cash Drawer Black
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
PFWB4200 POSIFLEXWall Mounting Kit for TX4200 Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
PB3200POSIFLEX PB-3200 POS Box Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel Cedar View D2550 Dual Core 1.86Ghz CPU / 1M Cache
Memory
DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 2 GB
Storage device(s)
In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
1 x Parallel port
6 x Standard USB Ports
1 x Optional 24V Powered USB Port
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port (D-Sub with 12V Power for Posiflex LCD Monitors)
Optional 2nd VGA with 12V Support for Posiflex Monitors
1 x HDMI Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x Mini-PCIe Slot
Audio
2W Speaker
OS Support
/ Windows 7 32bit / POSReady 7 32bit / Windows Embedded 8.1 Industry 32bit / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (80W)
(150W with 2nd VGA and/or Powered USB Option)
External Dimensions (WxDxH)
220mm x 202mm x 56mm
Weight
1.31 Kg
