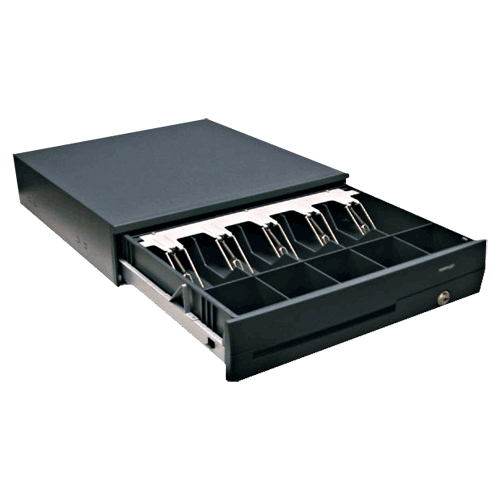

POSIFLEX CR-4100 Cash Drawer Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFCR4100B
  • CR*4100L0GD
  • CR4100, PB3200, PB4600, PB4600E, PB4700, TX3100, TX3700, TX4200, TX4200E, TX4200R, TX5000R, TX5003
  • Login to view pricing and availability

Posiflex CR-4100 Cash Drawer, Black, 10-30V Solenoid driven428(w) x 460(d) x 100(h) mm

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Rugged design with reinforced heavy gauge steel Construction
  • No scews or bolts to be accessed from the outside
  • 3 Position Key Lock
  • Screw less temper resistance design
  • 5 Note/9 Coin, fixed coin section
  • Metal Note Clips
  • 10~30V Solenoid operation standard, also available with interface solutions
  • RJ12 Modular solenoid kick out connector or Interface versions available
  • Available in Black and Ivory
  • 428mm (W) x 460mm (D) x 100mm (H)
User Manual146kb CR4XX0-4XX1-4XX2-4XX3-4X04-4X05_um.pdf
Exploded Parts View128kb CR4100_Parts_layout.pdf
OPOS Driver for .NET1,349kb PF_OPOS.NET_v1.1.3.zip
Parts List167kb CR4100_Partslist_Diagrams.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

C4141C4141 Cash Drawer
CB430CB-430 Cash Drawer
CB910CB-900 Cash Drawer
EC410EC-410 Cash Drawer
FK182AAFK-182AA Cash Drawer

Parts documents

Parts layout details

Construction Material
Steel Drawer
Plastic Coated Steel front
Metal Note clips
Screw-less tamper resistance design
Opening Rails
Nylon Rollers
Media slots
2 Slots
3 Position
Multiple Keyed Locks
Coin Departments
6 Fixed
Note Departments
5 Adjustable
Drawer Feedback
Drawer Open Microswitch
(CR4100) Printer or System Driven 10~30V Solenoid with RJ12 Connector
7.4 Kg
External Dimensions (WxDxH)
428 x 460 x100 mm
