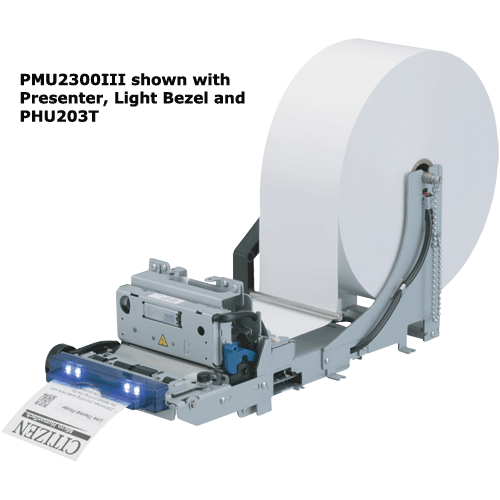

CITIZEN PMU2300III Kiosk Printer with Presenter & Blue Bezel

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PMU2303NNLP-U
  • PMU2300IIIPB-UBU
  • CITIZEN
  • PMU2300III
  • Login to view pricing and availability

PMU2300III with Presenter, Blue Light up Bezel, Only Horizontal Mount, Paper near end sensor, USB, no Paper holder, no optional Power Supply - AD36

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal Kiosk Printer with presenter
  • Paper load: Easy paper loading
  • Printing Speed: Prompt print out of receipts - up to 150mm per seconds
  • Paper thickness: Paper thickness up to 0.150mm
  • Small footprint and compact design
  • Presenter (including retract function)
  • Removable head design for easy cleaning and paper-jam recovery
  • Wide variety of paper-holding styles and options
  • Endurance: High endurance - up to 1 million cuts, headlife up to 100km
NameSizeDownload
Brochure166kb pmu2300III_Datasheet.pdf
User Manual14,178kb PMU2300III_User Manual.pdf
Command Reference Manual5,312kb CTS_PMU_CTP_CommandReference.pdf
Windows Driver (English models)74,762kb CIT_360_all_driver_files.zip
Printer Utility Program3,264kb CIT_POS_Printer_Utility_v283E.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot print method
Printing Width
80 mm
Dot Pitch
8 × 8 dots / mm (203 dpi)
Printing Speed (Max.)
Max. 150 mm/sec
Number of Columns
80 mm Paper:
Font A - 48 columns, Font B - 64 columns, Font C - 72 columns
Kanji Font A - 24 columns, Kanji Font C - 36 columns
Character Size
Font A:1.50 × 3.00 mm (12 x 24 Dots)
Font B:1.13 × 3.00 mm (9 x 24 Dots)
Font C: 1.00 x 2.00 mm (8 x 16 Dots)
Kanji Font A: 3.00 × 3.00 mm (24 x 24 Dots)
Kanji Font C: 2.00 × 2.00 mm (16 x 16 Dots)
Character Table/Code Pages
Alphanumeric, International character set (12 Characters x 16 Coutries)
Code Page: 437, 850, 852, 857, 858, 860, 863, 864, 865, 866
WPC1252, Katakana, Thai code 18, Kanji (JIS Level1 & 2), Kana, JIS C 6226-1983
Bar-code Type
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93, PDF417, QR Code
Line Spacing
4.23mm (1/6 inch) (changeable using commands)
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80+0/-1 mm
Paper Roll Diameter
Max Ø 102.0mm with PHU102 Paper holder
Max Ø 203.0mm with PHU203 Paper holder
Paper Thickness
Paper thickness PMU2300III : 60 to 87µm
Paper Supply Method
Easy Paper Loading
PHU102 & 203 can beTop loading (T Version) or Side loading (S Version)
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
FEED Switch
POWER LED
ERROR LED
Emulation
ESC/POS
Print Buffer
4K bytes / 45 bytes
NV Memory
256 Kb (capable of storing user-defined characters and logos)
Sensors
Paper end Sensor
Paper near end Sensor
Optional Black Mark Sensor
Drawer Port
NA
External Device Port
NA
Interfaces
USB
Serial (RS-232C compliant),
Parallel (IEEE1284 compliant)
Driver available
Windows 10, Windows 8, Windows Server 2012, Windows Server 2008, Windows 7, Windows Vista, Windows XP, Windows Server 2003
CUPS Linux Driver
CUPS Mac Driver
Software Utilities
Utility software to customize print speed, darkness and to set up user font, logo, maintenance counter, etc.
Power Supply
Input voltage DC24V±10% power consumption 1.9A (9A at peak)
*Optional AC Adapter 36AD compliant
Power Consumption
Approx. 100 W (normal printing)
External Dimensions (WxDxH)
PMU2303NNLP (PMU2300IIIPB): 113 x 260 x 98 mm (not with Paper holder)
Weight
PMU2303NNLP (PMU2300IIIPB): 1.2 Kg (not with Paper holder)
Operating Environment
-10 to 60°C (*36AD 0 to 45°C when in operation) , 35 to 85 % RH (no condensation)
Storage Environment
-25 to 65 °C, 10 to 90 % RH (no condensation)
Reliability
Printer head life : 100km, 100 million pulse (normal temperature, normal humidity, recommended paper)
Auto cutter life : 1 million cut (normal temperature, normal humidity, thickness 65µm when full cut)
EMC/Safety Standards
UL, C-UL, FCC class A, TÜV-Bauart, CE marking, GS, C-tick
