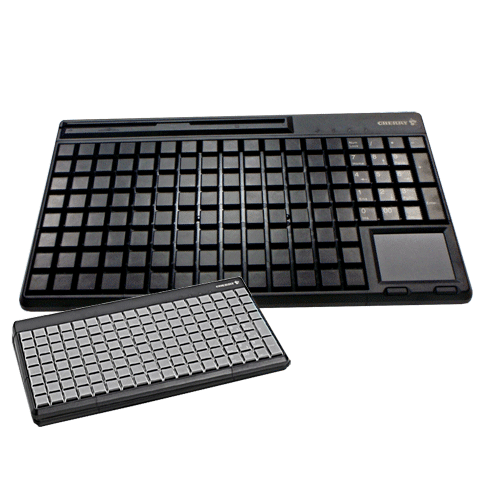

CHERRY SPOS G86-63400 Series Programmable Matrix Keyboard

(Product may vary from image. Rely only on description for purchasing decisions.)

Multifunctional, fully programmable USB keyboards with 18x8 Matrix Key Layout and optional Touchpad & 3 Track MSR . For professional commercial use, e.g. in Point-of-Service (POS), and for all other applications requiring maximal space efficiency with uncompromised data entry.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 142 or 130 key Matrix Layout incl. Numeric Keypad
  • Compact only 360 mm width
  • User-friendly unstinted standard 19 mm key spacing
  • IP54 rated spill and dust resistant key section
  • Flexible layout customization with exchangeable re-legendable keys
  • Fully programmable USB 2.0 keyboard
  • Factory Option: Touchpad with 2 mouse buttons
  • Factory Option: 3 Track MSR
  • Comprehensive UPOS support
  • Integrated memory
  • Cut-out mounting capabilities (circumferential rim)
  • Pluggable feet
NameSizeDownload
Brochure162kb chg86-634xx_series_brochure.pdf

Products available to purchase

 SKUVendorName
CHG86-63400LAEB-U CHERRYSPOS 63400 Matrix Keyb USB Black
CHG86-63401LAEB-U CHERRYSPOS 63401 Matrix Keyb Touchpad USB Black
CHG86-63410LAEB-U CHERRYSPOS 63410 Matrix Keyb MSR USB Black
CHG86-63411LAEB-U CHERRYSPOS 63411 Matrix Keyb MSR Touchp USB Black
CHS83810001 CHERRY1x2 black keycap for SPOS Horizontal
CHS83810003 CHERRY1x2 black Keycap for SPOS Vertical
CHS83810005 CHERRY1x2 Clear Lens for SPOS
CHS83810006 CHERRY2x2 black keycap (quad) for SPOS
CHS83810008 CHERRY2x2 Clear Lens cap (quad) for SPOS
CHG99-KEYSET-B CHERRYKeyset with dbl quad & sgl Black for SPOS
CHG99-KEYSET-i CHERRYKeyset with dbl quad & sgl Light Grey for SPOS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: no touchpad 142 keys, with Touchpad 130 keys
model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 38 mm
Weight
1.4Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, BSMI, cURus, CE, FCC, VCCI, Gost-R
