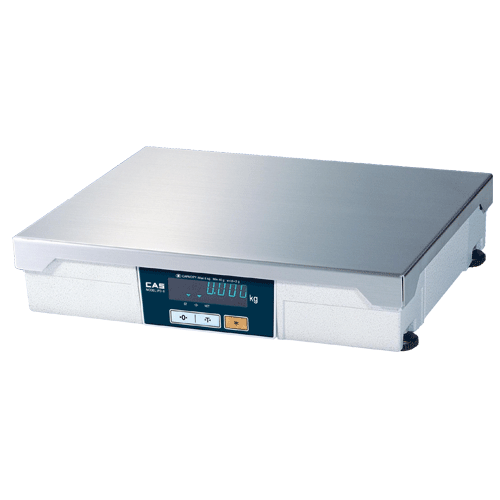

CAS PD-II PC ECR Series Interface Scale

(Product may vary from image. Rely only on description for purchasing decisions.)

The CAS PD-2 is heavy duty weight only scale with interfacing capabilities to PC POS Systems and Cash Registers.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Adjustable display
  • Low profile
  • Large weighing tray
  • Communication ports
  • - RS-232C
  • - Bit Parallel (ECR interface)
  • Easy-to-read VFD displays
  • Options:
  • 2nd display on scale
  • Remote pole type display: PD2PD
  • kg/lb convertible
NameSizeDownload
Brochure300kb cas_pd-2e_brochure.pdf

Products available to purchase

 SKUVendorName
CASPD2-15B CASPD-II 15Kg with VFD on Scale Black
CasPD2-15 CASPD-II 15Kg with VFD on Scale Ivory
CasPD2-30 CASPD-II 30Kg with VFD on scale Ivory
CAB-E101PD2 GOODSONCable DB9F - PC SPS530 320 ER9xx to PD2
CAB-E661PD2 GOODSONCable DB9M (ECR) to PD2 Scale
CAB-E103PD2 GOODSONCable RJ45 (ECR) to PD2 scale
CasPD2PD CASVFD Remote Pole Display for the CAS PD-II 2m Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Weight Capacity
Max. 6, 15, 30 or 60 Kg (depending on Model)
Weight Readability
2, 5, 10 or 20 g (depending on Model)
External Resolution
1/3000 (dual Interval)
Display
6 Digits VFD
Printer
NA
Printing Speed (Max.)
NA
Printing Resolution
NA
Label Size
NA
I/O Ports
RS232C, 4 bit Parallel (ECR Interface)
Keyboards
3 Function Keys
OS Functions
NA
Software Utilities
NA
Power Supply
AC 100~240V, 50/60Hz
External Dimensions (WxDxH)
Platter Size: 380 x 280 mm
Overall Size 380 x 280 x 79 mm
Operating Environment
-10 ~ 40°C, 10-90% RH
Weight
6.7 Kg
