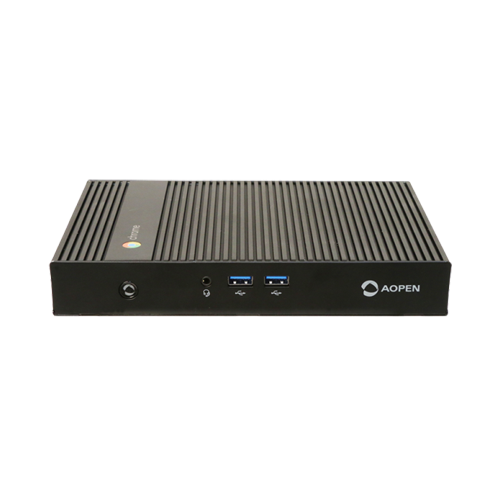

AOPEN Google ChromeBox Commercial II

(Product may vary from image. Rely only on description for purchasing decisions.)

A highly reliable and powerful device that operates 24/7, suitable for digital signage, kiosk and video wall applications. Running on Chrome OS. Powered by Intel technology, the Chromebox Commercial can run up to two UHD (4K) displays @30Hz or one UHD display @60Hz

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Digital Media Engine with Chrome OS
  • Tough and tamperproof design for 24/7 operability in public spaces.
  • Small form factor for easy installment behind displays or integration in kiosks, comes with L-shaped mount.
  • The solid-state and fanless design ensure a first-rate performance in challenging situations.
  • Shock and vibration resistant, wide-operating temperature range and fanless design, ensuring first-rate performance in challenging situations.
  • Through our preferred software platform meldCX, the Chromebox Commercial supports AI applications such as eyeball tracking and gesture-based movement.
  • Save valuable time and costs on installation, programming and maintenance with the optional Chrome Device Management (CDM).
NameSizeDownload
Brochure775kb Chromebox_Commercial2_Brochure.pdf

Products available to purchase

 SKUVendorName
AOBC5000-CHROME AOPENGoogle Chromebox Commercial II with Celeron 3965U
AOBC5003-CHROME AOPENGoogle Chromebox Commercial II with Core i3-7100U

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
BC5000; Intel® Celeron 3965U
BC5003: Intel® Core i3-8130U
Video Graphics: Intel HD Graphics integrated on CPU
Memory
Dual Channel
Type: DDR4 SO-DIMM
Standard 4GB
Storage device(s)
1x 32GB SSD or Higher
I/O Ports
Front Panel IO
USB 3.0 Port x 2
Audio Jack x 1
Power Button x 1

Rear Panel IO
DC Jack x 1
HDMI 1.4b Port x 1
HDMI 2.0b Port x 1
USB 2.0 Port x 2 (Celeron SKU)
USB 3.0 Port x 1 (Celeron SKU)
USB 3.0 Port x 2 (Core i3 SKU)
RJ45 LAN Jack x 1
Dual Band Antenna Holes x 2
Extended Power Switch x 1
RJ50 Port x 1
Audio
Realtek HD Audio ALC269Q
OS Support
Google ChromeOS
Operating Environment
0 ~ +50 °C
90% RH non Condensing
Storage Environment
-20 ~ +60 °C
90% RH non Condensing
Power Supply
19V/65W AC Adapter (Celeron SKU)
19V/90W AC Adapter (Core i3 SKU)
External Dimensions (WxDxH)
213 x 147 x 32 mm
Weight
1.7 Kg
EMC/Safety Standards
UL/CB/CE/FCC/ErP/RCM
