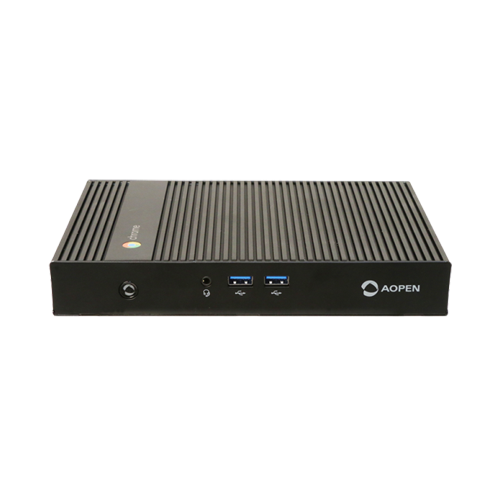

AOPEN Google Chromebox Commercial II with Core i3-7100U

(Product may vary from image. Rely only on description for purchasing decisions.)
  • AOBC5003-CHROME
  • 91.CX100.GU20
  • AOPEN
  • BC5000CHROMEII
    • Login to view pricing and availability

Google Chromebox Commercial 2 - BC5000High performance Intel® Core i3-7100, 4K2K 60Hz UHD Video Playback supportHDMI2.0B x 1, HDMI1.4B x 1, USB3.0 x 3, USB2.0 x 2, RS232(RJ50) x 1, GbE LAN x 1, Dual band Wifi, Bluetooth

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Digital Media Engine with Chrome OS
  • Tough and tamperproof design for 24/7 operability in public spaces.
  • Small form factor for easy installment behind displays or integration in kiosks, comes with L-shaped mount.
  • The solid-state and fanless design ensure a first-rate performance in challenging situations.
  • Shock and vibration resistant, wide-operating temperature range and fanless design, ensuring first-rate performance in challenging situations.
  • Through our preferred software platform meldCX, the Chromebox Commercial supports AI applications such as eyeball tracking and gesture-based movement.
  • Save valuable time and costs on installation, programming and maintenance with the optional Chrome Device Management (CDM).
NameSizeDownload
Brochure775kb Chromebox_Commercial2_Brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
BC5000; Intel® Celeron 3965U
BC5003: Intel® Core i3-8130U
Video Graphics: Intel HD Graphics integrated on CPU
Memory
Dual Channel
Type: DDR4 SO-DIMM
Standard 4GB
Storage device(s)
1x 32GB SSD or Higher
I/O Ports
Front Panel IO
USB 3.0 Port x 2
Audio Jack x 1
Power Button x 1

Rear Panel IO
DC Jack x 1
HDMI 1.4b Port x 1
HDMI 2.0b Port x 1
USB 2.0 Port x 2 (Celeron SKU)
USB 3.0 Port x 1 (Celeron SKU)
USB 3.0 Port x 2 (Core i3 SKU)
RJ45 LAN Jack x 1
Dual Band Antenna Holes x 2
Extended Power Switch x 1
RJ50 Port x 1
Audio
Realtek HD Audio ALC269Q
OS Support
Google ChromeOS
Operating Environment
0 ~ +50 °C
90% RH non Condensing
Storage Environment
-20 ~ +60 °C
90% RH non Condensing
Power Supply
19V/65W AC Adapter (Celeron SKU)
19V/90W AC Adapter (Core i3 SKU)
External Dimensions (WxDxH)
213 x 147 x 32 mm
Weight
1.7 Kg
EMC/Safety Standards
UL/CB/CE/FCC/ErP/RCM
