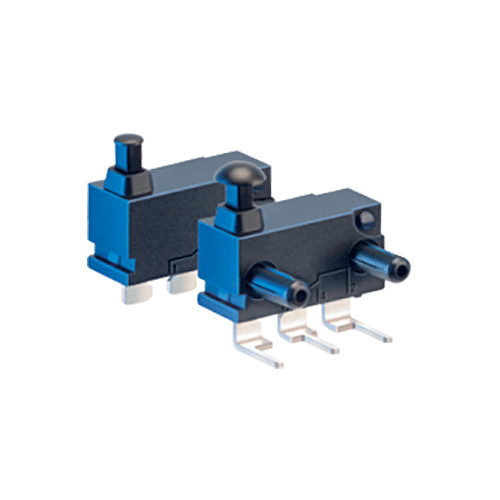

ZF Electronics DR-Series Snap Action sub-sub Miniature Switch Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Cherry Snap Action sub-sub Miniature Switch with mushroom or pan-head actuator, current rating from 0.5mA to 2A at 12 VDC

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

Power supply
Interface and Power Cables
Consumable products
Options
Software and Data Recovery

Available with mushroom or panhead actuator
Switching current 5 mA to 2 A DC
Switching voltage max. 12VDC (60 V on request)
High contact stability thanks to AuAg crosspoint contacts
Mechanical life up to 15 x 106 actuations
Auxiliary actuator on request
Degree of protection IP40

Name	Size	Download
Datasheet	322kb	cherry_dr_sub-subminiature_switch_datasheet.pdf

Products available to purchase

	SKU	Vendor	Name
	CSDR1P-CRAO	ZF Electronics	DR-series 2A 12V SPDT PCB R Mhead

All Vendor Sku's for this Products

This product is equivalent to the following products

SKU	Description
No Products to Display
