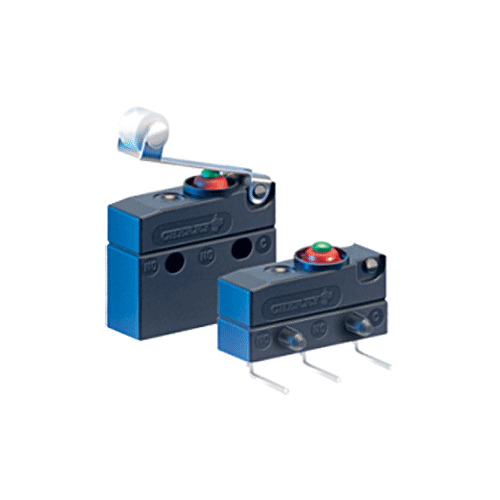

ZF Electronics DC-Series Snap Action Subminiature Switch Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Cherry IP6K7 Sealed Snap Action subminiature switch with High repeat accuracy

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • IP6K7 subminiature switch with high repeat accuracy
  • Switching Current 0.1 A to 10 A AC (model dependant)
  • Wide variety of auxiliary actuators
  • Actuators can also be retrofitted
  • High contact stability due to specific contact materials
  • Ambient temperature -40 to max. +120 °C
  • Mechanical life min. 1,000,000 operations
  • Approved according to EN 61058 and UL 1054
  • Silicon-free version available
NameSizeDownload
Datasheet590kb cherry_dc-series_subminiature_switch_datasheet.pdf

Products available to purchase

 SKUVendorName
CSDC1C-C3RC ZF ElectronicsDC-Ser 5A 250V SPDT Leads Acr Side Roller 4.7mm
CSDC1C-C3RB ZF ElectronicsDC-Ser 5A 250V SPDT Leads Act Side Roller 2.5mm
CSDC3C-K1AA ZF ElectronicsDC-Series 0.1A 250V SPDT PCB Str0.6 Button
CSDC2C-A1AA ZF ElectronicsDC-Series 10A 250V SPDT Solder Short Button
CSDC1C-A1AA ZF ElectronicsDC-Series 5A 250V SPDT Solder Short Button

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display
