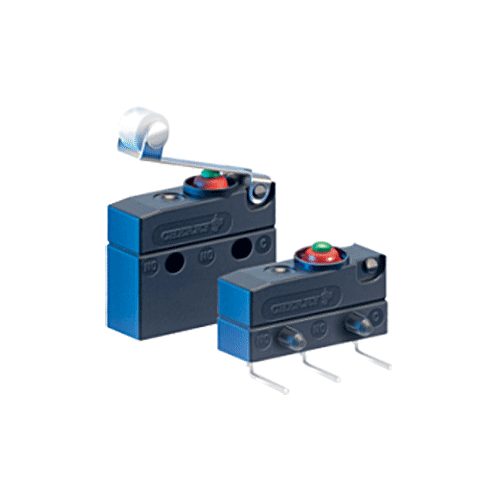

ZF Electronics DC-Series 5A 250V SPDT Solder Short Button

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CSDC1C-A1AA
  • CSDC1C-A1AA
  • ZF Electronics
  • CSDCSeries
  • Login to view pricing and availability

DC-Series 5A 250V SPDT Solder Short Button

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • IP6K7 subminiature switch with high repeat accuracy
  • Switching Current 0.1 A to 10 A AC (model dependant)
  • Wide variety of auxiliary actuators
  • Actuators can also be retrofitted
  • High contact stability due to specific contact materials
  • Ambient temperature -40 to max. +120 °C
  • Mechanical life min. 1,000,000 operations
  • Approved according to EN 61058 and UL 1054
  • Silicon-free version available
NameSizeDownload
Datasheet590kb cherry_dc-series_subminiature_switch_datasheet.pdf
