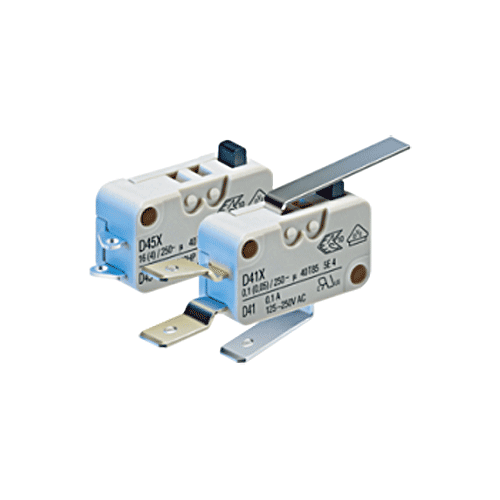

ZF Electronics D4-Series Snap Action Miniature Switch Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Cherry D4-Series Snap action Miniature Switch

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • Versatile miniature snap switch
  • High level of repeat accuracy
  • Switching current 0.1 to 21 A at 250 VAC
  • Wide variety of auxiliary actuators and terminal options
  • High contact stability due to specific contact materials
  • Fulfils requirements of IEC 603351: GWFI at 850 °C, GWIT at 775 °C & GWT 750°C
  • Ambient temperature -40 to max. +150 °C
  • Approved according to EN 61058 and UL 1054
  • Cadmium-free contact materials
  • Degree of protection IP40
Datasheet591kb cherry_d4-series_miniature_switch_datasheet.pdf

Products available to purchase

CSD449-R1ML ZF ElectronicsD4 Series 10A 250V QC4.8 Straight FM Actuator 74.5
CSD413-V3AA ZF ElectronicsD4-Series 0.1A 250V QC6.3 Dogleg Button
CSD413-V3LD ZF ElectronicsD4-Series 0.1A 250V QC6.3 Dogleg Button RM Lever
CSD413-V3RD ZF ElectronicsD4-Series 0.1A 250V QC6.3 Dogleg Button RM Roller
CSD41L-R1AA ZF ElectronicsD4-Series 0.1A 250V SPDT QC4 Button
CSD44R-Q1AA ZF ElectronicsD4-Series 10A 250V SPDT QC4 Straight Button
CSD459-P4AA ZF ElectronicsD4-Series 15A 250V SPDT PCB Under Button
CSD489-V3AA ZF ElectronicsD4-Series 21A 250V SPDT Tab 6.3x0.8 Button
