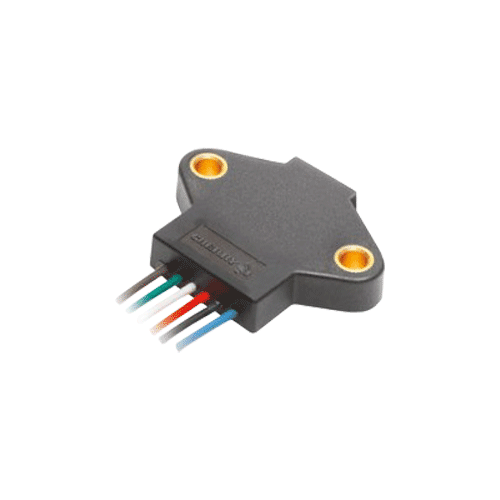

ZF Electronics Angle position Sensor sensing Range 180° wires

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CSAN82-0031
  • AN820031
  • ZF Electronics
  • CSANSeries
  • Login to view pricing and availability

Angle position Sensor sensing Range 180° wires

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
  • Non-contact magnetic position sensors
  • Angular position sensing to full 360° rotation
  • Dual (redundant) outputs assure very high reliability
  • EMI/ESD protection to SAE J1113 standards
  • Meets IEC 60529 IP68
  • High tolerance to mechanical misalignment
  • PWM output option available for custom applications
  • 5VDC ratiometric device
  • Maximum operating temperature 125°C
  • Performs with AS500106 standard magnetic carrier
NameSizeDownload
Datasheet983kb an8_an9_datasheet.pdf
