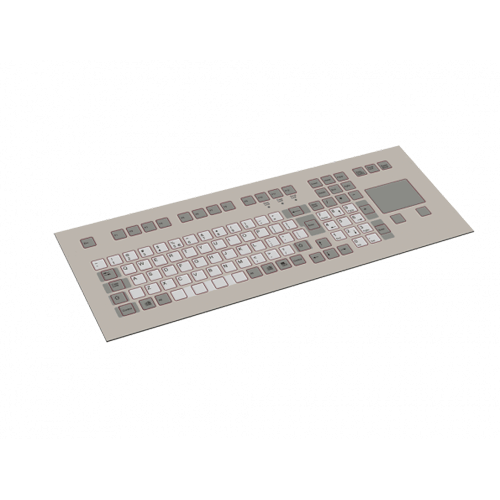

TIPRO K-Line Panel mount Keyboard with touchpad USB

(Product may vary from image. Rely only on description for purchasing decisions.)
  • TPK847-U
  • 42774
  • TIPRO
  • TPK847
  • Login to view pricing and availability

Tipro K-Line Industrial Panel mount Keyboard /w touchpad

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Industrial Panel Mount Keyboard
  • Standard keyboard Layout with 104 keys
  • Various national/county layouts available
  • integrated pointing device: touchpad
  • Panel-mount with Fixing studs
  • Omron’s B3F short-travel mechanical keyswitches
  • Water-protected from the front
  • USB or PS/2 interface
  • Supported by generic drivers
  • Programmable keys with enable/disable function
  • Implemented “Protect” function provides several access levels (security)
NameSizeDownload
K-Line Technical Overview628kb tipro_industrial_keyboards_to_v31.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: OMRON B3F Tactile Switches
Number of Keys: 104 Keys
Standard QWERTY Layout
Panel mount with Fixing studs
I/O Devices (Intergrated)
Touchpad
Model: Cirque TSM9925
Active area: 62.5 × 46.5 mm
Resolution: 40 counts/mm
Sample rate: 100 samples/s
Lifetime: 10 Million strokes (500 km) (typical)
Interfaces
USB
or PS2
Cable Lenght
approx. 1.80 m
Environmental Sealing
IP65 (to front)
Protective to Alcohol, diluted Acids, diluted Alkalis,, Esters, Hydrocarbons, Ketones and household cleaning agents
Current Consumption
Typical 25 mA for PS2
Typical 70 mA for USB
Operating Environment
0°C to 40°C
Relative humidity range: up to 90% (non-condensing)
Storage Environment
-10°C to 50°C
External Dimensions (WxDxH)
approx. 482.6 x 177.8 x 42.5 mm
Weight
Approx 1.48Kg
Reliability
Keyswitch Lifetime: 1 million operations
Product Compliance
C-tick, CE, RoHs
