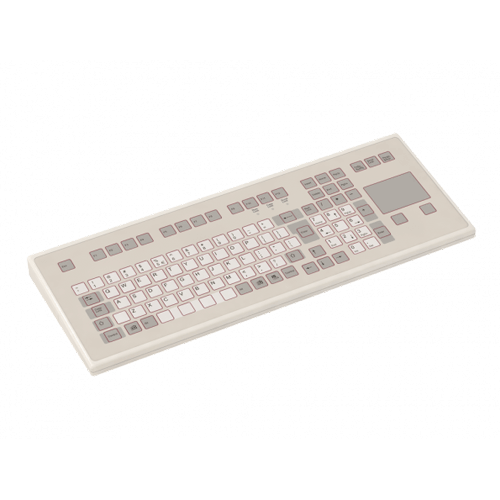

TIPRO K-Line 547 Industrial Std Keyboard with Touchpad, Desktop version

(Product may vary from image. Rely only on description for purchasing decisions.)

K-Line keyboards are robust and durable input devices intended for applications (e.g.factory automation) in mechanically and chemically stressful environments. Omron’s B3F short-travel mechanical keyswitches covered by protective embossed polyester membrane provide a good tactile feedback when typing, as well as a high functional reliability. The front side is resistant to dust, moisture, alcohol, diluted acids, diluted alkalis, esters, hydrocarbons, ketones and household cleaning agents, what makes K-Line keyboards also applicable in hygiene-critical environments.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Industrial Desktop Keyboard
  • Standard Layout keyboard with 104 keys
  • Various national/county layouts available
  • Integrated pointing device: touchpad
  • Omron’s B3F short-travel mechanical keyswitches
  • Water-protected from the front
  • USB or PS/2 interface
  • Supported by generic drivers
  • Programmable keys with enable/disable function
  • Implemented “Protect” function provides several access levels (security)
NameSizeDownload
K-Line Technical Overview628kb tipro_industrial_keyboards_to_v31.pdf

Products available to purchase

 SKUVendorName
TPK547-KR TIPROK-Line Desk top Industrial Keybd wTouchpad PS RS
TPK547-U TIPROK-Line Desk top Industrial Keybd wTouchpad USB

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: OMRON B3F Tactile Switches
Key travel: 0.3 +0,2/-0,1 mm
Lifetime: 1 Milion operations (minimal)
Actuating force: 255 ± 69 cN
Number of Keys: 104 Keys
Standard QWERTY Layout
Desktop keyboard with housing
I/O Devices (Intergrated)
Touchpad
Model: Cirque TSM9925
Active area: 62.5 × 46.5 mm
Resolution: 40 counts/mm
Sample rate: 100 samples/s
Lifetime: 10 Million strokes (500 km) (typical)
Interfaces
USB
or PS2
Cable Lenght
approx. 1.80 m
Environmental Sealing
IP65 (to front)
Protective to Alcohol, diluted Acids, diluted Alkalis,, Esters, Hydrocarbons, Ketones and household cleaning agents
Current Consumption
Typical 25 mA for PS2
Typical 70 mA for USB
Operating Environment
0°C to 40°C
Relative humidity range: up to 90% (non-condensing)
Storage Environment
-10°C to 50°C
External Dimensions (WxDxH)
approx. 478.5 x 180 x 28 mm
Weight
Approx 2.26Kg
Reliability
Keyswitch Lifetime: 1 million operations
Product Compliance
C-tick, CE, RoHs
