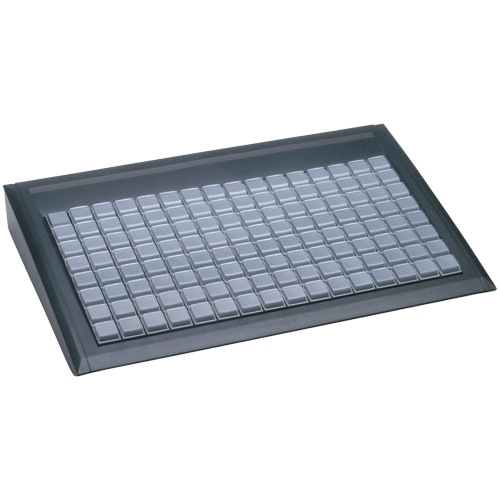

TIPRO Free Range TM-KMX-128A Keyboard Module

(Product may vary from image. Rely only on description for purchasing decisions.)

Tipro 128 Key Matrix Keyboard Module for the Free range products

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Programmable keyboard
  • 128 Key Matrix with Clear keycaps
  • Easy to use software utility
  • Power Consumption typical 15mA
  • Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
  • Available in Black or other range of colours by special order only
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
TPF-KMX128AB-U TIPROFree Rge 128 Key Matrix Keyb USB Black
TPFKEYCDH-CL TIPRODouble Horizontal Clear Keycover for Free Range
TPFKEYBDH-i TIPRODouble Horizontal Keybody Beige for Free Range
TPFKEYBDH-B TIPRODouble Horizontal Keybody Black for Free Range
TPFKEYBDH-DG TIPRODouble Horizontal Keybody Dark Grey for Free Range
TPFKEYBDH-GN TIPRODouble Horizontal Keybody Green for Free Range
TPFKEYBDH-R TIPRODouble Horizontal Keybody Red for Free Range
TPFKEYBDH-Y TIPRODouble Horizontal Keybody Yellow for Free Range
TPFKEYBDV-i TIPRODouble Vertical Keybody Beige for Free Range
TPFKEYBDV-B TIPRODouble Vertical Keybody Black for Free Range
TPFKEYBDV-BL TIPRODouble Vertical Keybody Blue for Free Range
TPFKEYBDV-DG TIPRODouble Vertical Keybody Dark Grey for Free Range
TPFKEYBDV-GN TIPRODouble Vertical Keybody Green for Free Range
TPFKEYBDV-R TIPRODouble Vertical Keybody Red for Free Range
TPFKEYBDV-Y TIPRODouble Vertical Keybody Yellow for Free Range
TPFKEYCDV-CL TIPRODouble Verticall Clear Keycover for Free Range
TPF-IBA-B TIPROFree Range i-Button reader
TPF-MRK-10 TIPROFree Range Keyboard controller TP-MRK-10
TPF-WCOVERL-B TIPROFree range Wide Left hand Cover Black
TPF-WCOVERR-B TIPROFree range Wide Right hand Cover Black
TPF-RCA-B TIPROFree Rge 3 Track MSR Black
TPFKEYCDH-B TIPROFree Rge Dbl Horizontal Key Cover Black
TPF-COVERLN-T TIPROFree Rge Left hand narrow Cover Titanium
TPF-COVERLN-B TIPROFree Rge Left hand narrow Cover Black
TPF-COVERRN-B TIPROFree Rge Right hand narrow Cover Black
TPF-COVERRN-T TIPROFree Rge Right hand narrow Cover Titanium
TPF-MUK-10 TIPROFree Rge USB Controller
TPF-VDA TIPROi-Button \w plastic fob
TPFKEYCNUM-B TIPRONumeric Keycover set Black for Free Range
TPFKEYCNUM-T TIPRONumeric Keycover set Titanium for Free Range
TPFKEYCQ-CL TIPROQuad Clear Keycover for Free Range
TPFKEYBQ-B TIPROQuad Keybody black for Free Range
TPFKEYBQ-BL TIPROQuad Keybody Blue for Free Range
TPFKEYBQ-DG TIPROQuad Keybody Dark Grey for Free Range
TPFKEYBQ-GN TIPROQuad Keybody Green for Free Range
TPFKEYBQ-R TIPROQuad Keybody Red for Free Range
TPFKEYBQ-Y TIPROQuad Keybody Yellow for Free Range
TPFKEYBS-i TIPROSingle Keybody Beige for Free range
TPFKEYBS-B TIPROSingle Keybody Black for Free Range
TPFKEYBS-BL TIPROSingle Keybody Blue for Free range
TPFKEYBS-GN TIPROSingle Keybody Green for Free range
TPFKEYBS-R TIPROSingle Keybody Red for Free range
TPFKEYBS-Y TIPROSingle Keybody Yellow for Free range
TPFKEYCS-CL TIPROSingle Keycover Clear for Free Range

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: Cherry MX Technology
Service life, standard key: > 25 million key operations
Number of Keys: 128 Keys
I/O Devices (Intergrated)
Optional Module Available
Interfaces
Optional Modules:
USB 2.0
PS2 & RS232
Cable Lenght
approx. 1.85 m if Interface module fitted
Current Consumption
Typical 15mA for module without interface
Typical 80mA (one keyboard module with integrated USB controller)
Plus typical 15mA for any added modules
Operating Environment
0°C to 40°C
Relative humidity range: 20% to 80% (non-condensing)
Storage Environment
-10°C to 50°C
External Dimensions (WxDxH)
approx. 329 x 222 x 42 mm
Weight
Approx 1.2Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
Product Compliance
C-tick, CE, RoHs
