TIPRO Free Range Numeric Keyb

(Product may vary from image. Rely only on description for purchasing decisions.)
  • TPF-KMX032NB
  • 42781
  • TIPRO
  • TPFKMX032
  • Login to view pricing and availability

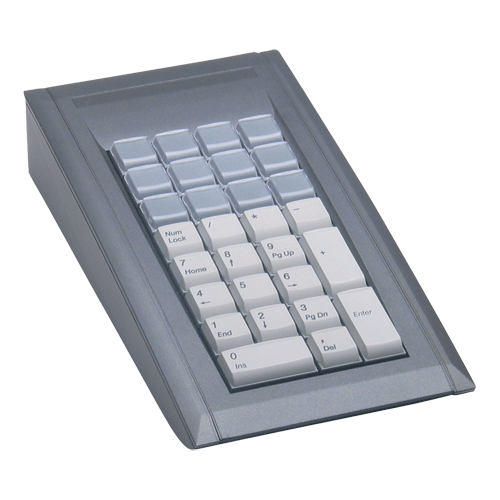

FREE range TIPRO Keyboard. Pre Programmed Numeric keys in lower 5 rows, 12 Programmable keys in top 3 rows. No Controller. Black Colour.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Programmable keyboard
  • 32 Key Matrix with Clear keycaps or pre-programmed numeric plus 12 key matrix
  • Power Consumption typical 15mA
  • Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
  • Available in Black or other range of colours by special order only
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: Cherry MX Technology
Service life, standard key: > 25 million key operations
Number of Keys: 32 Keys
Available in Matrix Version or Numeric Key Layout
I/O Devices (Intergrated)
Optional Module Available
Interfaces
Optional Modules:
USB 2.0
Cable Lenght
approx. 1.85 m if Interface module fitted
Current Consumption
Typical 15mA for module without interface
Typical 80mA (one keyboard module with integrated USB controller)
Plus typical 15mA for any added modules
Operating Environment
0°C to 40°C
Relative humidity range: 20% to 80% (non-condensing)
Storage Environment
-10°C to 50°C
External Dimensions (WxDxH)
approx. 100 x 222 x 42 mm
Weight
Approx 350g
Reliability
Keyswitch Lifetime: 25 mill. operations
Product Compliance
C-tick, CE, RoHs
