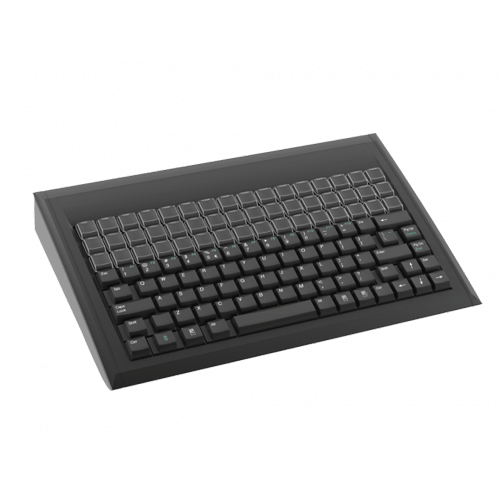

TIPRO Free Range 128 QWERTY Keyb Module Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • TPF-KMQ128AB
  • 42777
  • TPFKMQ128
  • Login to view pricing and availability

Free Range 128 QWERTY Keyb Module Black

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Programmable keyboard
  • QWERTY Section 5 Bottom Rows
  • 48 free programmable clear capped keys on upper 3 rows
  • Easy to use software utility
  • Power Consumption typical 15mA
  • Available with PS2/RS232 or USB Controller or without controller to connect to other Free range keyboard with a controller.
  • Available in Black or other range of colours by special order only
  • 329mm (W) x 222mm (D) x 42mm (H)
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Key technology: Cherry MX Technology
Service life, standard key: > 25 million key operations
Number of Keys: 128 Keys
QWERTY Layout on 5 Bottom Rows
48 Free Programmable Keys on Top Rows
I/O Devices (Intergrated)
Optional Module Available
Optional Modules:
USB 2.0
PS2 & RS232
Cable Lenght
approx. 1.85 m if Interface module fitted
Current Consumption
Typical 15mA for module without interface
Typical 80mA (one keyboard module with integrated USB controller)
Plus typical 15mA for any added modules
Operating Environment
0°C to 40°C
Relative humidity range: 20% to 80% (non-condensing)
Storage Environment
-10°C to 50°C
External Dimensions (WxDxH)
approx. 329 x 222 x 42 mm
Approx 1.2Kg
Keyswitch Lifetime: 25 mill. operations
Product Compliance
C-tick, CE, RoHs
