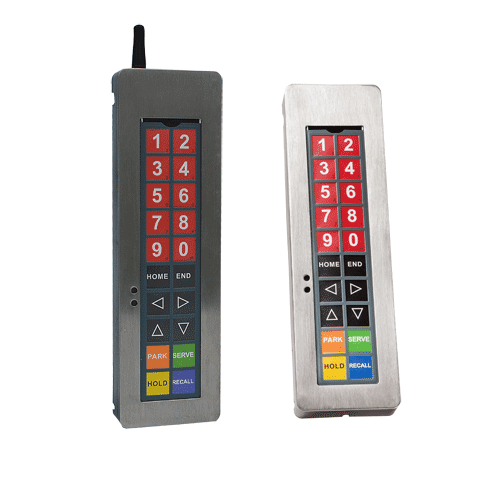

TG3 20 Key Bump Bar Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Highly durable 20 Key Bump bar Keyboard, designed for kitchen video systems, either tethered or wireless with easy changeable legends

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Interfaces with your current kitchen video system
  • Tuff Key technology
  • High quality and aordable
  • Easy installation
  • Relegendable quick and easy to change
  • 3 year warranty standard
  • Available with wired or wireless interfaces
  • 20 key sealed membrane input surface
  • Long key switch life cycle for dependable operation
  • Standard and custom mounting solutions available
NameSizeDownload
Brochure139kb tg3_20key_brochure.pdf
TG3 Bump Bar Setup Guide424kb TG3_Bump_Bar_Initial_Setup.pdf

Products available to purchase

 SKUVendorName
TGBB20TE-U TG320 Key Bump Bar Tethered USB
TGBB20WR-U TG320 Key Bump Bar Wireless Receiver USB
TGBB20WT TG320 Key Bump Bar Wireless Transmitter

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: Duraswitch
20 key sealed membrane input surface
I/O Devices (Intergrated)
N/A
Interfaces
USB
or PS2
or RS232
or Wireless (Custom Wireless protocol between transmitter and receiver)
Cable Lenght
approx. 1.80 m
Current Consumption
N/A
Operating Environment
0°C to 70°C
Storage Environment
-40°C to 70°C
External Dimensions (WxDxH)
approx. 75 x 27 x 253 mm
Weight
0.703 Kg
Reliability
Key strokes life: 50 million cycles
Product Compliance
C-tick, BSMI, CE, FCC, UL, VCCI
