BIXOLON SRP-S300L Thml Printer Linerless USB Eth interface Blk T

(Product may vary from image. Rely only on description for purchasing decisions.)
  • SRPS300LSUEG
  • SRP-S300TOEK
  • BIXOLON
  • SRPS300L
  • Login to view pricing and availability

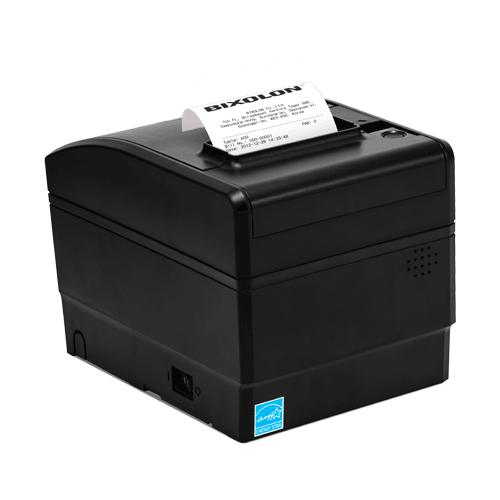

SRP-S300L 3" Thermal Printer for Linerless Label Paper with USB & Ethernet Interface and Paper Taken Sensor, Black

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Liner Free Label Printer
  • Exceptional Technologies
  • World’s first liner-free label printer equipped with specialized back-feed technology (SRP-S300L)
  • Anti-jam technology is provided by special paper path design and automatic guillotine cutting system
  • Paper save mode, reducing the length of a receipt up to 25%
  • Printing speed up 170 mm/sec (SRP-S300L), 300 mm/sec (SRP-S300R)
  • Built-in power supply saves counter space and protects against water damage
  • Built-in USB 2.0, Optional I/F card (Serial, Parallel, Ethernet, WLAN and Bluetooth)
  • Stand-alone or space-saving wall-mount use
  • Easy to replace auto-cutter is included
NameSizeDownload
Brochure217kb srp-s300_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Direct Thermal
Printing Width
Up to 80/72/60/48/32 mm
Dot Pitch
203 dpi
Printing Speed (Max.)
170 mm/Sec
Number of Columns
80 mm Paper:
Font A - 48 columns
Font B - 64 columns
Font C - 64 columns
KOR, CHN, JPN - 24 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Font C: 9 x 24 Dots
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128 x 33 page
International Character: 32
Bar-code Type
1D: UPC-A/E
2D: PDF417, QR Code, Data Matrix
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Thermal Liner Free Label Paper
Paper Width
83/80/62/58/40 mm
Paper Roll Diameter
Max Ø 103.0mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Emulation
BXL/POS
Print Buffer
Receive Buffer: 4 KBytes
User Define Memory: 12KBytes
Indicators/Controls
Power/Error LED
Paper feed & Power Button
Built in B-Medolist: for Voice Error messages, order notification alarms
NV Memory
256 KBytes
Sensors
Paper End Sensor , Paper near end sensor, Black Mark sensor, Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
Interfaces
USB V2.0 Standard
plus optional RS232, Parallel, Ethernet, WLAN 802.11 b/g/n, Bluetooth or Powered USB
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux Driver, Mac Cups Driver
Software Utilities
Virtual COM USB/Ethernet Driver
Utility Software Package
Weight
Approx. 2.0 Kg
External Dimensions (WxDxH)
158 x 214 x 154 mm
Reliability
Head: 75 Km
Auto Cutter: 1.0 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
Power Supply
Built in Power supply Input: AC100 ~240V DC 24V, 2.5A
Power Consumption
Energy Star Certified
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-20-60°C
10-90% RH None condensing
