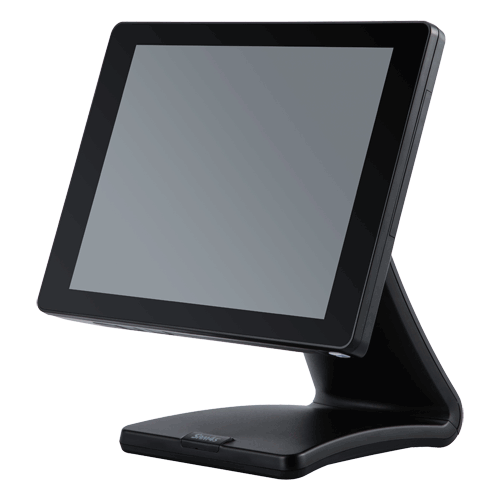

SAM4S TITAN S560 Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

TITAN 560S series is SAM4S’s upgrade version POS terminal with low energy, high performance CPU in a modern and slim but strong design. With bright and vivid screen provided by an excellent touch monitor with frontal IP55 protection structure, your user experience with TITAN S will be convenient. With its simple assembly design, it is easy to install and convenient for maintenance.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel Bay Trail J6412 up to 2.6G Quad core CPU, 1.5M cache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Variety of Storage Possibilities mSATA/m.2/SATAIII 2.5"
  • Microsoft Azure certified
NameSizeDownload
Brochure219kb TITAN-S500 Series Leaflet(ENG)_230523.pdf

Products available to purchase

 SKUVendorName
SPT560SB-40128S21 SAM4STITAN S560 J6412 PCAP 4G 128G SSD WIN10 2021 Blk
SPT36L15B SAM4S15" Customer Display for the Titan S360 Black
SPT36L15W SAM4S15" Customer Display for the Titan S360 White
SPT55MSR3S SAM4S3 Track MSR for SPT557x Silver
SPT55L7B SAM4S7" Customer LCD Display for Titan SPT55xx Series
SPT36L10W SAM4S9.7" Customer Display for Titan S360 White

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail J6412 up to 2.6GHz Quad core (1.5M Cache)
Memory
DDR4 2 slot. 4GB standard expandable to 32GB
expansion slots: m.2 Slot
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased larger SSD Drives
Display
15" LED Backlight LCD Display
Resolution
1024 x 768
Tilt Angle
N/A
Touch Panel
True Flat PCAP Touch (Standard in Australia)
I/O Ports
3 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable, one port selectable to RS422/485
6 x Standard USB Ports (2 x USB 2.0/2 x USB 3.0 on Bottom, 2 x USB 2.0 on the side)
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port (Factory Option)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
1 x Audio Ports (Line out)
Audio
Internal Speaker 2W
OS Support
WIN 10 IoT 2021
Environmental Sealing
IP55 to Front
Operating Environment
0 ~ +40 °C, 20 ~ 85% RH with SSD
Storage Environment
-20 ~ +60 °C, 10 ~ 85% RH
Power Supply
DC 12V/5A
External Dimensions (WxDxH)
379mm x 362mm x 264mm
Weight
6.0 Kg
