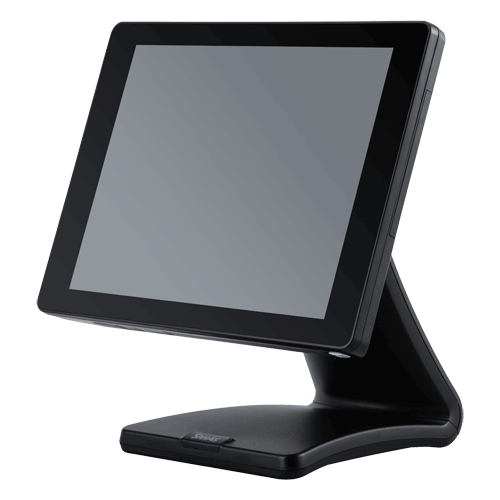

SAM4S TITAN S360 Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

TITAN S series is a SAM4S’s latest POS terminal with low energy, high performance CPU in a modern and slim but strong design. With bright and vivid screen provided by an excellent touch monitor with frontal IP55 protection structure, your user experience with TITAN S will be convenient. With its simple assembly design, it is easy to install and convenient for maintenance.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel Bay Trail J1900 up to 2.42G Quad core CPU, 2M cache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Supporting M.2 SSD
  • Microsoft Azure certified
NameSizeDownload
Brochure270kb spt360_brochure.pdf

Products available to purchase

 SKUVendorName
SPT360SBW-40128SE SAM4STITAN S360 J1900 PCAP 4G 128G SSD WIN10I C Blk-Wh
SPT360SB-40128SE SAM4STITAN S360 J1900 PCAP 4G 128G SSD WIN10 LTSC Blk
SPT360SBW-40128SD SAM4STITAN S360 J1900 PCAP 4G 128G SSD WIN10I Blk-White
SPT360SB-40128SD SAM4STITAN S360 J1900 PCAP 4G 128G SSD WIN10IoT Black
SPT360SBWGC102D SAM4STITAN S360W Bundle with GC102D White
SPT36L15B SAM4S15" Customer Display for the Titan S360 Black
SPT36L15W SAM4S15" Customer Display for the Titan S360 White
SPT55MSR3S SAM4S3 Track MSR for SPT557x Silver
SPT55L7B SAM4S7" Customer LCD Display for Titan SPT55xx Series
SPT36L10W SAM4S9.7" Customer Display for Titan S360 White

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Bay Trail J1900 up to 2.42G Quad core (2M Cache)
Memory
DDRIIIL One slot. 4GB standard expandable to 8GB DDRIIIL
expansion slots: mini PCIe slot & m.2 Slot
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
15" LED Backlight LCD Display
Resolution
1024 x 768
Tilt Angle
N/A
Touch Panel
True Flat PCAP Touch (Standard in Australia)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F
I/O Ports
4 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable, one port selectable to RS422/485
6 x Standard USB Ports (2 x USB 2.0/2 x USB 3.0 on Bottom, 2 x USB 2.0 on the side)
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port (Factory Option)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
1 x Audio Ports (Line out)
Audio
N/A
OS Support
POSReady 7 / WIN 8 Industry Retail / WIN IoT
Environmental Sealing
IP55 to Front
Operating Environment
0 ~ +40 °C, 20 ~ 85% RH with SSD
Storage Environment
-20 ~ +60 °C, 10 ~ 85% RH
Power Supply
DC 12V/5A
External Dimensions (WxDxH)
380mm x 380mm x 380mm
Weight
5.9 Kg
