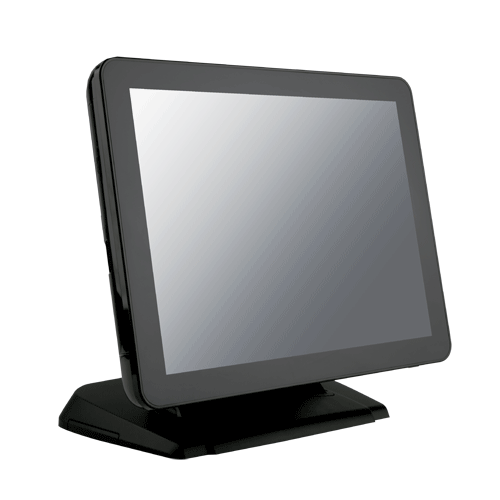

SAM4S SPT-4856 PC POS 15" Touch Terminal Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

SPT-4856 series with a stylish high-gloss design suit any store environment and have a excellent performance capable of running demanding applications.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Powerful performance with the latest Intel Celeron N3160 Quad Core CPU
  • Vivid color and sharp graphics with LED backlight LCD
  • Mass storage devices supported(HDD, SSD, mSATA, CFAST)
  • Various Customer Display (VFD, 7” , 9.7” & 15” LCD Dual)
  • Silent, fan-free systems for reliability
  • Tool-less access for convenient maintenance
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
SPT48V202B SAM4S2 Line VFD Display for SPT SAP48xx Black
SPT48L7B SAM4S7" Customer LCD Display for the SPT48xx Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Celeron N3160 (Quad Core 2.24GHz)
Memory
DDR III SODIMM 2 Slot (Up to 16GB) standard 4GB
Storage device(s)
SATA-III(6.0Gb/s) 2.5" HDD / SSD / mSATA SSD
In Australia Standard with 128 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display
15" Active Matrix LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: PCAP (USB I/F)
I/O Ports
4 x RS-232 Ports (2 x DB9, 2 x 10 pin RJ45) with 5V/12V Support
6 x Standard USB Ports 2 x USB2.0 on Site and 4 x USB 3.0 on rear
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display plus 12V socket
1 x HDMI Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x Parallel port
Audio Ports (Line in, Line out, Mic)
Audio
3 Ports (Line in & out/Mic. in)
OS Support
WIN10 IoT
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
External Dimensions (WxDxH)
360mm x 225mm x 310mm
Weight
5.9 Kg
