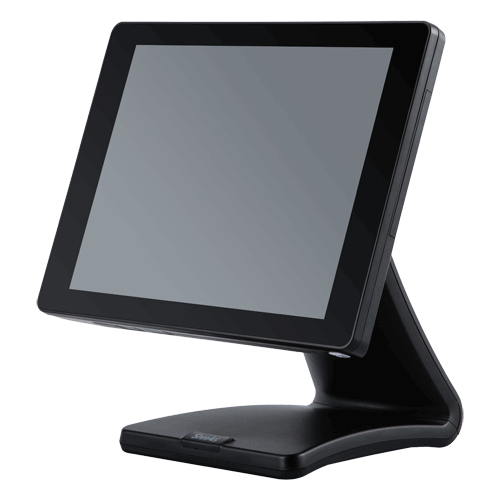

SAM4S SAP-6600 Android Tch Syst 2G 16G SSD A 6 Wifi Bt

(Product may vary from image. Rely only on description for purchasing decisions.)
  • SAP6600W-2016SA
  • SAP-6600/WGOD12SNB
  • SAM4S
  • SAP6600
  • Login to view pricing and availability

SAP-6600 15" Fanless Touch System, Intel Celeron N3160 Quad Core 2.24 GHz, PCAP Touch, 2 GB DDRIII, 16 GB M.2 SSD, 3 x RS232, 6 x USB, 1 x Ethernet, 1 x VGA, 1 Drawer port 12V/24V Selectable, WIFI & BT, Android 6.0

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Android 6.0 POS Touch Terminal
  • Low energy consumption
  • High resolution 15" LED LCD
  • LCD Resolution 1024 x 768 (XGA)
  • Powerful performance with INTEL N3160 Quad core CPU
  • Silent Fan Free system for high reliability
  • 16 GB Mass Storage Capacity
  • Tool-less access for easy maintenance
  • Multiple Interfaces for a full range of optional peripherals
  • Optional 2 Line Customer Display or 7" Customer LCD Display, 3 Track MSR
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Celeron N3160 Quad core up to 2.24 GHz
Memory
DDRIII One slot. 2GB standard expandable to 8GB DDRIII
Storage device(s)
16 GB SSD Standard in Australia & New Zealand
Display
15" LED Backlight LCD Display
Resolution
1024 x 768
Tilt Angle
N/A
Touch Panel
True Flat PCAP Touch (Standard in Australia & New Zealand)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F
I/O Ports
3 x RS-232 Ports (2 x DB9, 1 x RJ45) with 5V/12V BIOS selectable
6 x Standard USB Ports (4 x USB 3.0 on Bottom, 2 x USB 2.0 on the side)
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x VGA Port for 2nd Display + 12V power outlet
1 x Parallel port (Factory Option)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
3 x Audio Ports (Line in & Line out/ Mic in)
Wifi & Bluetooth Built-in (Standard in Australia & New Zealand)
Audio
N/A
OS Support
Android 6.0 (Marshmallow)
Environmental Sealing
IP55 to Front
Operating Environment
0 ~ +40 °C, 20 ~ 85% RH with SSD
Storage Environment
-20 ~ +60 °C, 10 ~ 85% RH
Power Supply
DC 12V/5A
External Dimensions (WxDxH)
380mm x 380mm x 380mm
Weight
5.9 Kg
