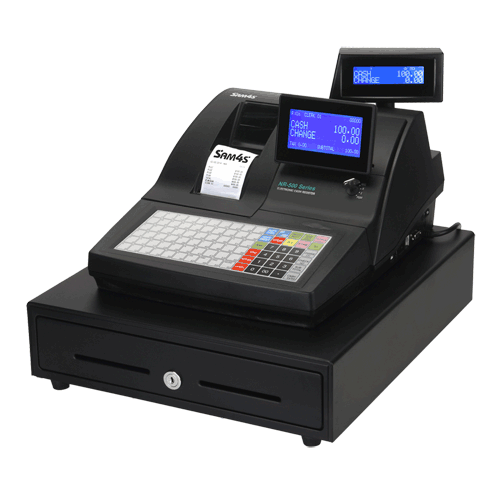

SAM4S NR-520 Thermal 2 Station Cash Register

(Product may vary from image. Rely only on description for purchasing decisions.)

NR-500 series is a powerful solution suited for a wide range of retail and hospitality operations. This model is convenient to use as it provides the operator a high-visible display and other advance features.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Midrange Dual Station Cash Register
  • Wide Multi Line Graphic Display
  • 16 Char. x 2 Line LCD Rear Display
  • 90-Key Flat or 48 Key Raised Keyboard
  • Electronic Journal
  • Easy Data Back up, Restore and Report
  • Ethernet/USB/RS232 PC Communication
  • SD Backup, Restore & Reporting
  • RS232 for Kitchen Printing, Security or Scanning
NameSizeDownload
Brochure572kb nr5xx_brochure.pdf
User Manual2,891kb NR-500(GOODSON) USER MANUAL.pdf
USB Virtual Com port driver13kb SAM4S_ECR_USB_VCOM_driver.zip
Raised Keyboard Template80kb NR5x0RBKeyCap.doc
Flat Keyboard Template59kb NR5x0BStandard.doc
Flat Programming Keyboard Template38kb NR5x0BQWERTY.doc

Products available to purchase

 SKUVendorName
NR520B SAM4SNR520 2-station Thermal ECR Flat Keyboard
NR520RB SAM4SNR520 2-station Thermal ECR Raised Keyboard
SRP275IIICUREG BIXOLONSRP275IIIC USB RS232 Ethernet interface Dark Grey
CAB-E661PC9 GOODSONCable DB9M (ECR) PC DB9 2m
CAB-E661PR25 GOODSONCable ECR DB9M to Serial Printer DB25M 2m
CAB-E103PC9 GOODSONCable RJ45 (ECR) to PC DB9F
CAB-E103PR25 GOODSONCable SPS1000 Com 3-Printer 2m
CAB-USB2AA2 GOODSONUSB 2A to USB 2A Cable 1.8m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
ER420MER-420M Cash Register
ER420MBSAM4S ER-420 Series
ER430MER-430M Cash Register
ER430MBSAM4S ER-430 Series

Parts documents

Parts layout details

Specifications
Printer
2 Station Direct Thermal Type
Printing Speed (Max.)
up to 18 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading,
Keyboards
NR-520: 90 Key Flat Keyboard
NR-520R: 48 Raised Key Keyboard (Special Order only, MOQ applies)
Display
Operator: 192 x 64 Graphic LCD
Customer: 16 Character x 2 Line LCD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (1 x DB9F, 1 x RJ45)
1 x USB port (Software Configurable to host/device)
1 x Ethernet (for PC Comms)
Memory
FlashROM: 2 MByte (internal CPU) for Firmware
RAM: 8 MBits SRAM
Memory Protection
60 Days
Memory Configuration
up to 8000 PLU's
Max. 99 Clerks
Max. 99 Groups
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 15000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
24 Character Description
14 Digit PLU Number
5 Modifier Levels
10 Macro keys
10 Tender Keys
9 Auto Cash Keys
3 Keyboard Levels
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Software Utilities
Programming Utility Software (Ethernet/Serial/USB)
Power Supply
AC 230V +/- 10%
Power Consumption
10 W
EMC/Safety Standards
CE, FCC, UL, TUV, RoHS, C-tick
External Dimensions (WxDxH)
400 x 450 x 266 mm
Weight
13 Kg
