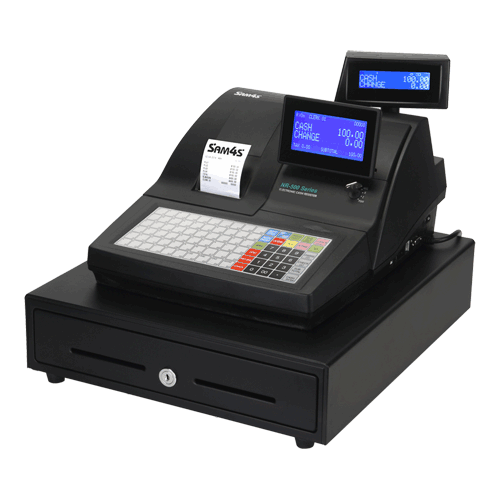

SAM4S NR-510 Thermal Single Station

(Product may vary from image. Rely only on description for purchasing decisions.)

NR-500 series is a powerful solution suited for a wide range of retail and hospitality operations. This model is convenient to use as it provides the operator a high-visible display and other advance features.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Midrange Single Station Cash Register
  • Wide Multi Line Graphic Display
  • 16 Char. x 2 Line LCD Rear Display
  • 90-Key Flat or 48 Key Raised Keyboard
  • Electronic Journal
  • Easy Data Back up, Restore and Report
  • Ethernet/USB/RS232 PC Communication
  • SD Backup, Restore & Reporting
  • RS232 for Kitchen Printing, Security or Scanning
NameSizeDownload
Brochure572kb nr5xx_brochure.pdf
User Manual2,891kb NR-500(GOODSON) USER MANUAL.pdf
USB Virtual Com port driver13kb SAM4S_ECR_USB_VCOM_driver.zip
Raised Keyboard Template80kb NR5x0RBKeyCap.doc
Flat Keyboard Template59kb NR5x0BStandard.doc
Flat Programming Keyboard Template38kb NR5x0BQWERTY.doc

Products available to purchase

 SKUVendorName
NR510B SAM4SNR510 Single Station Thermal ECR Flat Keyboard
NR510RB SAM4SNR510 Single Station Thermal ECR Raised Keyboard
SRP275IIICUREG BIXOLONSRP275IIIC USB RS232 Ethernet interface Dark Grey
CAB-E661PC9 GOODSONCable DB9M (ECR) PC DB9 2m
CAB-E661PR25 GOODSONCable ECR DB9M to Serial Printer DB25M 2m
CAB-E103PC9 GOODSONCable RJ45 (ECR) to PC DB9F
CAB-E103PR25 GOODSONCable SPS1000 Com 3-Printer 2m
CAB-USB2AA2 GOODSONUSB 2A to USB 2A Cable 1.8m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
ER380MBSAM4S ER-380 Series
ER390MBSAM4S ER-390 Series

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 18 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading,
Keyboards
NR-510: 90 Key Flat Keyboard
NR-510R: 48 Raised Key Keyboard (Special Order only, MOQ applies)
Display
Operator: 192 x 64 Graphic LCD
Customer: 16 Character x 2 Line LCD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (1 x DB9F, 1 x RJ45)
1 x USB port (Software Configurable to host/device)
1 x Ethernet (for PC Comms)
Memory
FlashROM: 2 MByte (internal CPU) for Firmware
RAM: 8 MBits SRAM
Memory Protection
60 Days
Memory Configuration
up to 8000 PLU's
Max. 99 Clerks
Max. 99 Groups
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 15000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
24 Character Description
14 Digit PLU Number
5 Modifier Levels
10 Macro keys
10 Tender Keys
9 Auto Cash Keys
3 Keyboard Levels
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Software Utilities
Programming Utility Software (Ethernet/Serial/USB)
Power Supply
AC 230V +/- 10%
Power Consumption
10 W
EMC/Safety Standards
CE, FCC, UL, TUV, RoHS, C-tick
External Dimensions (WxDxH)
400 x 450 x 266 mm
Weight
13 Kg
