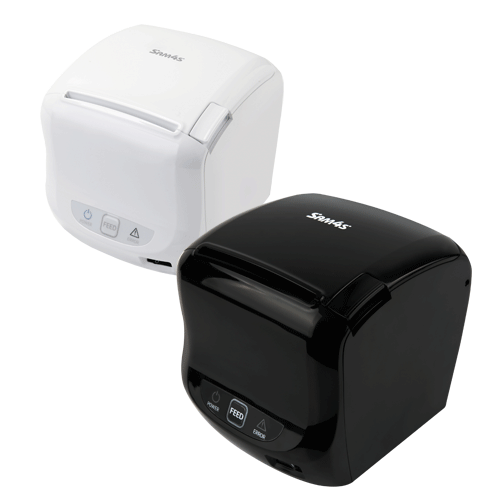

SAM4S GT-100 (Giant) Thermal POS Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The GIANT-100 is a new 3" receipt printer, distinctive in its compact size and modern design without compromise to performance while still using the industry standard 80mm wide direct thermal receipt paper rolls. The GT-100 is a signpost design that introduces the direct for future receipt printer design formats.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Thermal POS Printer
  • 250mm/sec Printing Speed
  • Compact Size/Small Footprint
  • Supporting USB+Serial, USB+WiFi and USB+Serial+Ethernet(3-Combo) Interface
  • Tool-less Design
NameSizeDownload
Brochure591kb gt100_brochure.pdf
User Manual2,233kb giant100_ume.pdf
Windows Driver37,079kb SAM4SPrinterDriverInstallerV3.0.0.exe
OPOS Driver19,604kb SAM4S_OPOSSET_RV1.41.exe
MAC Cups Driver2,216kb SAM4S_Mac_CUPS_Printer_Driver.zip
JAVA POS Driver27,391kb SAM4S_Receipt_Printer_JavaPOS_Driver-0.6.0.2-Mac_64Bit-Install.zip
MAC & JAVA POS installation manual649kb SAM4S_Receipt_Printer_MacOSX_JPOS_Installation_Manual.pdf
Android SDK3,312kb SAM4S_Android_SDK_v1.23.zip

Products available to purchase

 SKUVendorName
GT100UERBL SAM4SGT-100 Thermal POS Printer USB RS232 ETH I F
GT100UERW SAM4SGT-100 Thermal POS Printer USB RS232 Eth interface White
GT100UWBL SAM4SGT-100 Thermal POS Printer USB WIFI interface Blk
GT100KBELL SAM4SKitchen Bell for the GT100 GCube100
GT100SPLASH SAM4SSplash Cover for the GT-100
CAB-ETH02 GOODSONPatchlead RJ45 Ethernet 2m Gry
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
TMT20TM-T20 Series Thermal POS Printer
TMT82TM-T82 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal printing
Printing Width
80mm Paper 72mm
58mm Paper 54mm
Dot Pitch
180 dpi
Printing Speed (Max.)
Max. 250 mm/sec
Number of Columns
80 mm Paper: Font A - 42 columns, Font B - 56 columns
58 mm Paper: Font A - 30 columns, Font B - 40 columns
Character Size
Font A:42/21
Font B:56/28
Character Table/Code Pages
Refer to Programming manual
Bar-code Type
UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code
Line Spacing
N/A
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80+0/-1 mm, 58 mm+0/-1
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
0.06 - 0.08mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine Type
Indicators/Controls
Power Light, Error Light, Feed Button, on/off Switch
Emulation
ESC/POS
Star
Print Buffer
64KB
NV Memory
128K NV Memory
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB & RS232(RJ45) & Ethernet
Driver available
WEPOS,POSReady2009, Windows XPpro,Windows Vis,Windows 7 Pro,POSready 7,Windows 8 Pro,Industry 8, OPOS,JPOS,Linux,Cups,Max(OSX10.8),Android SDK
Software Utilities
Power Supply
External AC Adapter
Rated input: AC 90 to 264 V, 50/60 Hz
Rated output: DC24 V, 2.5 A
Power Consumption
External Dimensions (WxDxH)
131w × 155d × 133h mm
Weight
0.9 Kg
Operating Environment
5-45°C, 10-90% RH
Storage Environment
-10-50°C, 10-90% RH
Reliability
MCBF Mechanism: 70 mil Lines
Thermal Print head: 150Km
Auto Cutter: 1.5 Mil cuts
EMC/Safety Standards
FCC class A, CE marking, TUV/GS, CE, CB, cTUVus
