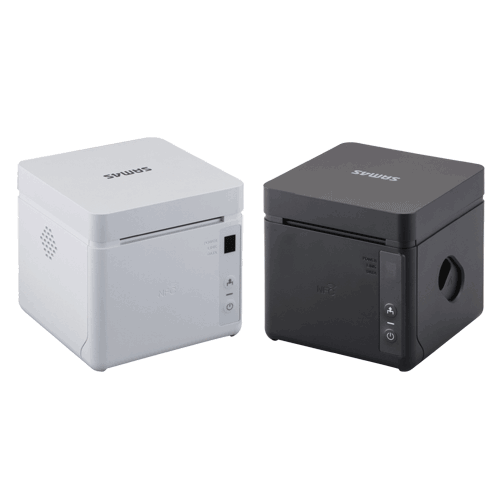

SAM4S GCUBE 100 Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The Gcube Series Roll Printer is designed for use with electronic instruments such as system ECR, POS, banking equipment, computer peripheral equipment, etc. The main feature is the versatilty of installation it can be a front loading and feeding printer or it can be set up as a top loading and feeding printer. Can be placed on a bench or mounted under a bench or shelf with an optional bracket or it can be wall mounted.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • The smallest receipt printer in the world
  • 180dpi or 203dpi (special order) available
  • Fast speed printing up to 250mm/sec
  • Flexible Design: Front & Top Feeding (Waterproof)
  • in Front feeding possition, loading is also from the front
  • Available in Black or White (Special Order)
  • Flexible Composition
  • Setting : LED notification, NFC function
  • Installation : Wall type, Under shelf type (optional Bracket available)
  • Various Interface models:
  • USB+Serial, USB+Serial+Ethernet, USB+Bluetooth+Ethernet, USB+Wi-Fi+Ethernet
  • JAM Free
NameSizeDownload
Brochure729kb Gcube leaflet_web.pdf
User Manual2,309kb GCUBE100_ume.pdf

Products available to purchase

 SKUVendorName
GC102D-UERBL SAM4SGCUBE 100D Thermal Printer USB RS232 ETH interface Blk
GC102D-UERW SAM4SGCUBE 100D Thermal Printer USB RS232 ETH interface White

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal printing
Printing Width
80mm Paper 72mm
58mm Paper 54mm
Dot Pitch
GCUBE102: 203 dpi
GCUBE100: 180 dpi (Special Order)
Printing Speed (Max.)
Max. 250 mm/sec on 80 mm Mono Paper
Max. 150 mm/sec on 58 mm Mono Paper
Max. 100 mm/sec on Two Colour Paper
Number of Columns
On 80mm paper
Font A : 48 (Gcube-102), 42 (Gcube-100),
Font B : 64 (Gcube-102), 56 (Gcube-100),
Character Size
Font A:42/21
Font B:56/28
Character Table/Code Pages
N/A
Bar-code Type
UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR, PDF417, QR Code
Line Spacing
N/A
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80+0/-1 mm, 58 mm+0/-1
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
0.06 - 0.08mm
Paper Supply Method
Easy Paper Loading either from top or front, Drop in and Print
Auto Cutter
Guillotine Type
Indicators/Controls
Power light, LED for operation codes, Feed Button, on/off Switch
Emulation
ESC/POS
Star
Print Buffer
64KB
NV Memory
8Mbyte Data Memory
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB, RS232 & Ethernet
USB, RS232 & Parallel (Special Order)
USB, Ethernet & Wifi
USB, Ethernet & Bluetooth
Driver available
Windows driver, OPOS, JPOS (Linux & Mac), Cups driver (Linux & Mac)
Software Utilities
Utility Program
Power Supply
External AC Adapter
Rated input: AC 90 to 264 V, 50/60 Hz
Rated output: DC24 V, 2.5 A
Power Consumption
External Dimensions (WxDxH)
123w × 123d × 123h mm
Weight
0.75 Kg
Operating Environment
5-45°C, 10-90% RH
Storage Environment
-10-50°C, 10-90% RH
Reliability
Mechanism: 70Mil Lines
Thermal Print head: 150Km
Auto Cutter: 1.5 Mil cuts
EMC/Safety Standards
FCC class A, CE marking, TUV/GS, CE, CB, cTUVus
