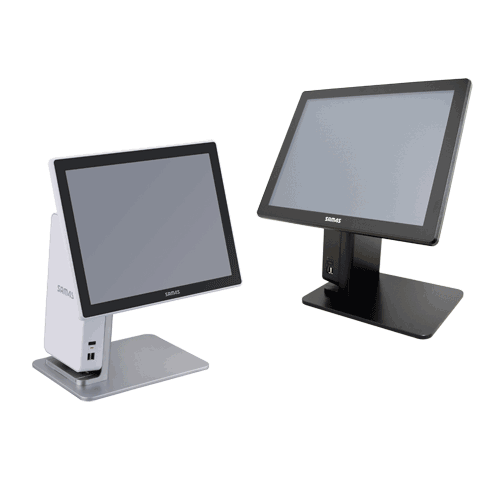

SAM4S FORZA i3 PC POS System series

(Product may vary from image. Rely only on description for purchasing decisions.)

New stylish POS system from SAM4S the FORZA with 7th Core i3 7100U CPU. Available in Black, Silver/White and Silver/Black Colour Scheme.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fanless Touch System
  • 15" LED LCD Display with True-Flat PCAP Touch
  • Intel 7th Generation (Kaby Lake) Intel® Core™ i3 Processor 7100U 2.40 GHz, 3 MB SmartCache
  • Energy Efficient and Low Heat Generation Architecture
  • Slim Display, Sleek Chassis and Small Footprint Design
  • Easy Assembly & Maintnance
  • IP55 dust and water Proof Front Panel
  • Superior Serviceability and Easy Installation
  • Fanless Operation and No Ventilation Hole
  • Supporting M.2 SSD
NameSizeDownload
Brochure1,444kb FORZA_leaflet_181219_web.pdf

Products available to purchase

 SKUVendorName
SPTF135WS-40128SE SAM4SFORZA-135 i3 PCAP 4G 128G SSD WIN10Iot LTSC Wh Slv
SPTF135WS-40128SD SAM4SFORZA-135 i3 PCAP 4G 128G SSD WIN10Iot White Silve
SPTF135BB-40128SE SAM4SFORZA-135 i3 PCAP 4G 128G SSD WIN10IotLTSC Black
SPTF-L15BB SAM4S15" Customer Display for FORZA Black Black
SPTF-L10BB SAM4S9.7" Customer Display for FORZA Black Black
SPTF-L10WS SAM4S9.7" Customer Display for FORZA White Silver
SPTF-TL10BB SAM4S9.7" Customer PCAP Touch Display for FORZA Blk Blk
SPTF-MSR3B SAM4SFORZA 3 Track MSR Black
SPTF-MSR3W SAM4SFORZA 3 Track MSR White

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel 7th Generation (Kaby Lake) Intel® Core™ i3 Processor 7100U 2.40 GHz, 3 MB SmartCache
Memory
DDR4 2 Slots (up to 32 GB)
Standard in Australia 4GB
Storage device(s)
In Australia Standard with 128 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
15" LED Backlight LCD Display
Resolution
1024 x 768
Tilt Angle
N/A
Touch Panel
True Flat PCAP Touch (Standard in Australia)
Optional; 5 Wire Resistive touch (Special Order, MOQ Applies)
USB I/F
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x RJ45) with 5V/12V BIOS selectable
6 x Standard USB Ports
1 x 10/100/1000Mb Ethernet Port. Half/Full duplex capability
1 x HDMI Port
1 x DP Port
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable) 12/24V selectable
Optional Extension Ports:
Type A; 4 x USB Port
Type B: 2 x RS232 Ports (1 x DB9, 1 x RJ45)
Type C: 1 x Parallel port
Audio
Internal Speaker 2W
OS Support
POSReady 7 / WIN 8.1 Industry Retail / WIN 10 IoT Enterprise
Environmental Sealing
IP55 to Front
Operating Environment
0 ~ +40 °C, 20 ~ 85% RH with SSD
Storage Environment
-20 ~ +60 °C, 10 ~ 85% RH
Power Supply
DC 12V/5A
External Dimensions (WxDxH)
355 x 215 x 432 mm
Weight
5.35 Kg
