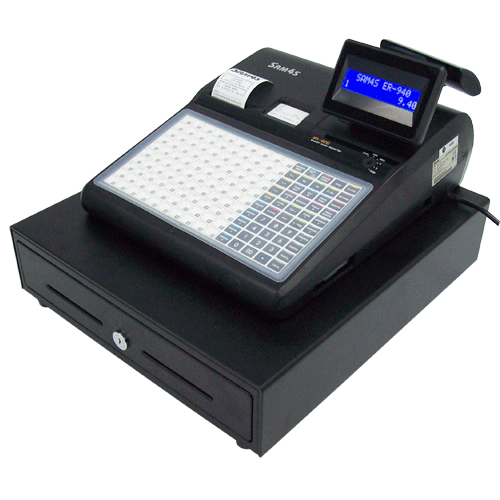

SAM4S ER-940 Dual station Cash Register

(Product may vary from image. Rely only on description for purchasing decisions.)
  • ER940
  • ER940
  • SAM4S
  • ER940
  • Login to view pricing and availability

ER-940 Dual station Cash Register

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Highly featured 2 Station Cash Register
  • High Speed (23 LPS) 2 Station Direct Thermal Printer with Auto Cutter on Receipt Printer.
  • Drop in Paper loading
  • 3 x RS232 ports for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output, the 4th port is USB Virtual COM port for PC Communication only.
  • 2 Line LCD Operator Display
  • Up to 3300 PLU's standard, 20000 Max
  • Table Tracking for up to 500 Tables
  • Graphic Logo Print
  • Electronic Journal
NameSizeDownload
Brochure350kb ER9x0_brochure.pdf
Standard Keyboard Overlay (Inverted Function Keys)111kb ER940StandardLayoutIC.doc
Standard Keyboard Overlay109kb ER940StandardLayoutSC.doc
Programming Keyboard Overlay108kb ER900QWERTYLayout.doc
USB Virtual Com port driver for ECR port 413kb SAM4S_ECR_USB_VCOM_driver.zip
ER9xx User Manual2,836kb ER-900_AU _User_Manual.pdf
PC Utility for ER9xx FLASHROM Version 01.019 and Later4,694kb ER9xx_PC_Utility_v01.011.zip
PC Utility for ER9xx FLASHROM Version 01.013 - 01.0174,683kb ER9xx_PC_Utility_v01.008.zip
PC Utility for ER9xx FLASHROM Version 01.0124,683kb ER9xx_PC_Utility_v01.007.zip
PC Utility for ER9xx FLASHROM Version 01.0114,683kb ER9xx_PC_Utility_v01.006.zip
PC Utility for ER9xx FLASHROM Version 01.0104,681kb ER9xx_PC_Utility_v01.005.zip
PC Utility for ER9xx FLASHROM Version 01.008- 01.0094,680kb ER9xx_PC_Utility_v01.004.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
ER5200MSAM4S ER-5200 Series

Parts documents

Parts layout details

Specifications
Printer
2 Station Direct Thermal Type with Auto Cutter on Receipt
Printing Speed (Max.)
up to 22 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Keyboards
150 Key Flat Keyboard
or 91 Key Raised Keyboard
Display
Operator: LCD 2 Lines of 16 Characters (Blue Backlight)
Customer: 9 Digit VFD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
3 x RS232 (2 x DB9, 1 x RJ45)
1 x USB (virtual COM) this port can be changed to RS232 (RJ45) (optional)
1 x SD Slot (not compatible with SDHC)
Memory
ROM: 16 MBits Flash ROM
RAM: 16 MBits SRAM
Memory Protection
90 Days
Memory Configuration
up to 15000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 500 Checks (Accounts/Tables)
Max. 200 Lines per record
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 50000 lines Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
15 Digit PLU Number
5 Modifier Levels
20 Macro keys (with Manager Control Option)
10 Tender Keys
Charge Posting Accounts
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 200 Line Record per Transaction
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Virtual Com Port Driver for Windows (32/64-bit)
Power Supply
AC 230V +/- 10%
Power Consumption
19W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
400 x 455 x 305 mm
Weight
12.4 Kg
