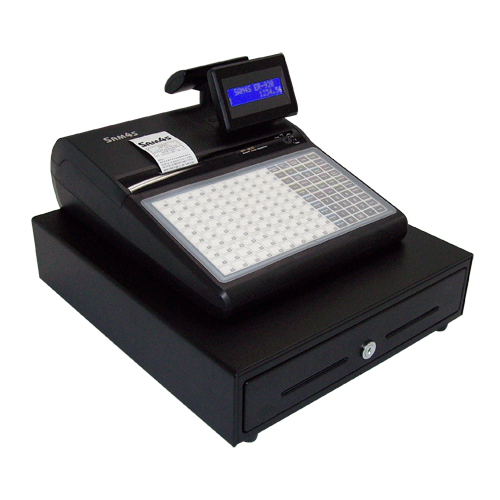

SAM4S ER-920 Thermal Single Station Cash Register

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-920 is a solution for a wide range of Hospitality environments. It has a 2 line LCD display with eye fetching ocean blue backlight and single drop in paper loading thermal printer and is well suited for the small to medium restaurants and various retail operations.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Highly featured 1 Station Cash Register
  • High Speed (23 LPS) 1 Station Direct Thermal Printer with Auto Cutter
  • Drop in Paper loading
  • 3 x RS232 ports for Scanner, Scale, PC communication, Kitchen/Bar Printer or Journal Surveillance output, the 4th port is USB Virtual COM port for PC Communication only
  • 2 Line LCD Operator Display
  • Up to 15000 PLU's
  • Table Tracking for up to 500 Tables
  • Graphic Logo Print
  • Electronic Journal
NameSizeDownload
Brochure350kb ER9x0_brochure.pdf
Standard Keyboard Overlay (Inverted Function Keys)111kb ER920StandardLayoutIC.doc
Standard Keyboard Overlay109kb ER920StandardLayoutSC.doc
Programming Keyboard Overlay108kb ER900QWERTYLayout.doc
USB Virtual Com port driver for ECR port 413kb SAM4S_ECR_USB_VCOM_driver.zip
ER9xx User Manual2,836kb ER-900_AU _User_Manual.pdf

Products available to purchase

 SKUVendorName
ER920 SAM4SER-920 Single Station Cash Register
EBCA84N SAM4SCash insert Assy (Large Metal Drawer) ERxxx
JK73-20225A SAM4Skeyboard wet cover Flat (150) ER9xx SPS3xx
JK73-20227A SAM4SKeyboard wet cover Raised (98) ER9xx SPS3xx
SAM-ELL87N SAM4SLockable Lid for new ECR CDR
CAB-E101PD2 GOODSONCable DB9F - PC SPS530 320 ER9xx to PD2
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-USB2AA2 GOODSONUSB 2A to USB 2A Cable 1.8m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
ER5200MSAM4S ER-5200 Series

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type with Auto Cutter
Printing Speed (Max.)
up to 22 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Keyboards
150 Key Flat Keyboard
or 91 Key Raised Keyboard
Display
Operator: LCD 2 Lines of 16 Characters (Blue Backlight)
Customer: 9 Digit VFD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
3 x RS232 (2 x DB9, 1 x RJ45)
1 x USB (virtual COM) this port can be changed to RS232 (RJ45) (optional)
1 x SD Slot (not compatible with SDHC)
Memory
ROM: 16 MBits Flash ROM
RAM: 16 MBits SRAM
Memory Protection
90 Days
Memory Configuration
up to 15000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 500 Checks (Accounts/Tables)
Max. 200 Lines per record
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 50000 lines Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
15 Digit PLU Number
5 Modifier Levels
20 Macro keys (with Manager Control Option)
10 Tender Keys
Charge Posting Accounts
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 200 Line Record per Transaction
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Virtual Com Port Driver for Windows (32/64-bit)
Power Supply
AC 230V +/- 10%
Power Consumption
19W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
400 x 455 x 305 mm
Weight
12 Kg
