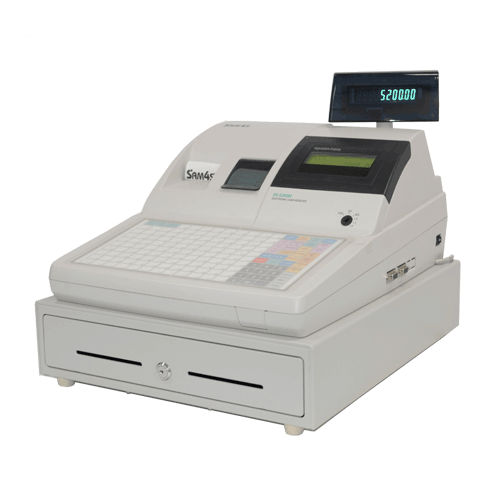

SAM4S ER-5200M Thermal Dual Station Cash Register *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-5200M is a solution for a wide range of Hospitality environments. It is the replacement of the very popular ER5200. It has a 2 line LCD display and dual drop in paper loading thermal printers and is well suited for the small to medium restaurants and various retail operations.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured 2 Station Cash Register
  • High Speed (13.3 LPS) 2 Station Direct Thermal Printer
  • Drop in Paper loading
  • Auto Cutter
  • 2 x RS232 ports for Scanner, Scale, PC communication & Kitchen/Bar Printer.
  • 2 Line LCD Operator Display
  • Up to 15000 PLU's
  • Table Tracking for up to 500 Tables
  • Compressed print on the Journal Roll
  • Graphic Logo Print
NameSizeDownload
Brochure1,577kb ER5200M_brochure.pdf
User Manual1,066kb ER-52xx_M_AU User Manual.pdf
Standard Keyboard Overlay76kb ER5200Standard.doc
Programming Keyboard Overlay77kb ER5200qwerty.doc
PC Utility for ER5200M FLASHROM Version 5.1R and Later1,439kb ER52xx_PC_Utility_v3.00e.zip
PC Utility for ER5200M FLASHROM Version 3.9R - 5.0R787kb ER52xx_PC_Utility_v3.00c.zip
PC Utility for ER5200M FLASHROM Version 3.5R - 3.8R545kb ER52xx_PC_Utility_v2.00f.zip
PC Utility for ER5200M FLASHROM Version 3.4R536kb ER52xx_PC_Utility_v2.00c.zip
PC Utility for ER5200M FLASHROM Version 1.5 - 3.3R533kb ER52xx_PC_Utility_v1.27.zip

Products available to purchase

 SKUVendorName
EBCA84N SAM4SCash insert Assy (Large Metal Drawer) ERxxx
JK73-20216A SAM4SKeyboard wet cover for ER5200 SPS530
SAM-ELL87N SAM4SLockable Lid for new ECR CDR
CAB-E661PC9 GOODSONCable DB9M (ECR) PC DB9 2m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
2 Station Direct Thermal Type with Auto Cutter on Receipt
Printing Speed (Max.)
up to 13.3 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Keyboards
160 Key Flat Keyboard (Standard in Australia)
or 90 Key Raised Keyboard
Display
Operator: LCD 2 Lines of 16 Characters
Customer: 10 Digit VFD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (DB9F)
Memory
ROM: 8 MBits Flash ROM
RAM: 2 MBits SRAM
Memory Protection
60 Days
Memory Configuration
up to 15000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 500 Checks (Accounts/Tables)
Max. 100 Lines per record
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
15 Digit PLU Number
5 Modifier Levels
10 Macro keys (with Manager Control Option)
10 Tender Keys
Charge Posting Accounts
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Power Supply
AC 230V +/- 10%
Power Consumption
25W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
400 x 455 x 305 mm
Weight
15.2 Kg
