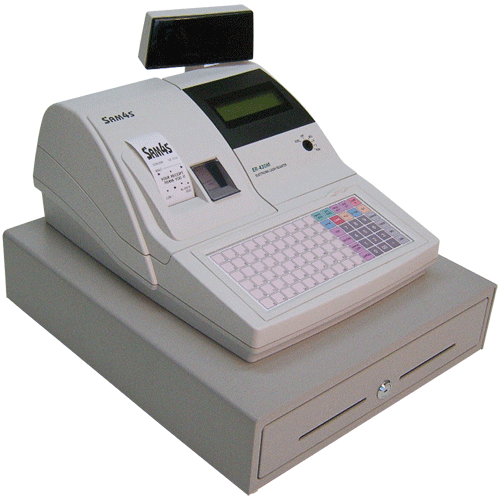

SAM4S ER-430M Thermal Dual Station Cash Register *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-430M is a flat keyboard solution for a wide range of Retail & hospitality environments. With its 2 line LCD display and 2 station thermal printer it is well suited for the small to medium retail store or Fast Food and Cafe Operations. It has a very easy to use table tracking system.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured 2 Station Cash Register
  • 90 Key Flat Programmable Keyboard
  • High Speed (20 LPS) 2 Station Direct Thermal Printer (44mm paper)
  • Drop in Paper loading
  • 2 x RS232 ports for Scanner, Scale, PC communication & Kitchen/Bar Printer.
  • 2 Line LCD Operator Display
  • Up to 9000 PLU's
  • Graphic Logo Pre- & Postamble
  • 18 Character Description
  • 30 day account charge posting function
Brochure261kb er430m_brochure_au.pdf
User Manual1,864kb ER-430MAU User Manual.pdf
Standard Keyboard Overlay82kb ER430MStandard.doc
Programming Keyboard Overlay41kb ER430MQWERTY.doc
PC Utility for ER430M EEPROM Version 2.1 - 2.8717kb
PC Utility for ER430M EEPROM Version 1.7 - 2.0985kb
PC Utility for ER430M EEPROM Version 1.4 - 1.6738kb
PC Utility for ER430M EEPROM Version 1.2 - 1.3727kb
PC Utility for ER430M EEPROM Version 1.0 - 1.1425kb

Products available to purchase

EBCA84N SAM4SCash insert Assy (Large Metal Drawer) ERxxx
SAM-ELL87N SAM4SLockable Lid for new ECR CDR
T4470 GOODSONThermal 44x70 Rolls 48 per Box

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

2 Station Direct Thermal Type
Printing Speed (Max.)
up to 20 Lines/sec
Paper Width
44 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
90 Key Flat Keyboard
Operator: LCD 2 Lines of 16 Characters
Customer: 10 Digit VFD
Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (DB9F)
ROM: 8 MBits Flash ROM
Memory Protection
60 Days
Memory Configuration
up to 9000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 500 Checks (Accounts/Tables)
Max. 100 Lines per record
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
(Maximums depends on Memory sharing choices)
OS Functions
24 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
15 Digit PLU Number
5 Modifier Levels
10 Macro keys (with Manager Control Option)
10 Tender Keys
Charge Posting Accounts
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Power Supply
AC 230V +/- 10%
Power Consumption
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
400 x 455 x 266 mm
13 Kg
