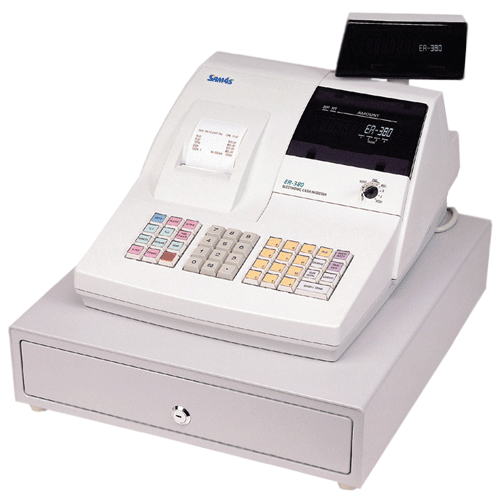

SAM4S ER-380 Thermal Single Station Cash Register *** Obsolete ***

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-380 is a basic Cash Register solution for a wide range of smaller retail environments. Basic yet very powerful with many features seen in higher end machines.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured Single Station Cash Register
  • High Speed (13.3 LPS) Thermal Printer (57mm paper)
  • Drop in Paper loading
  • 1 x RS232 ports for Scanner, Scale, PC communication & Kitchen/Bar Printer.
  • Up to 5000 PLU's
  • Raised 43 Key Keyboard
  • Graphic Logo print
  • Electronic Journal up to 3000 lines
  • Interrupt Cashier Lay-away
  • 18 Character Description
  • 30 day account charge posting function
NameSizeDownload
Brochure289kb ER380_brochure.pdf
New Keyboard overlay29kb er380_new_keyb_overlay.doc
ER380 / 380M User Manual1,205kb ER-380M_AU User Manual.pdf
PC Utility for ER380 EEPROM Version 4.1 and Later1,039kb ER380_PC_Utility_v2.02a.zip
PC Utility for ER380 EEPROM Version 3.3 - 4.01,061kb ER380_PC_Utility_v2.01g.zip
PC Utility for ER380 EEPROM Version 2.1 - 3.21,039kb ER380_PC_Utility_v2.01d.zip
PC Utility for ER380 EEPROM Version 1.7 - 2.0494kb ER380_PC_Utility_v1.04a.zip
PC Utility for ER380 EEPROM Version 1.6498kb ER380_PC_Utility_v1.03b2.zip
PC Utility for ER380 EEPROM Version 1.0 - 1.5498kb ER380_PC_Utility_v1.03b1.zip

Products available to purchase

 SKUVendorName
EBCA84N SAM4SCash insert Assy (Large Metal Drawer) ERxxx
JK73-20203A SAM4Skeyboard wet cover ER290 380
SAM-ELL87N SAM4SLockable Lid for new ECR CDR
CAB-E661PC9 GOODSONCable DB9M (ECR) PC DB9 2m
CAB-E661PR25 GOODSONCable ECR DB9M to Serial Printer DB25M 2m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 13.3 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 83.0 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Keyboards
44 Key Raised Keyboard
Display
Operator: 10 Digit VFD
Customer: 10 Digit VFD
Drawer
Metal drawer 4B/8C with media Slots
I/O Ports
1 x RS232 (DB9F)
Memory
ROM: 4MBits Flash ROM
RAM: 2 MBits SRAM
Memory Protection
60 Days
Memory Configuration
up to 5000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 500 Checks (Accounts/Tables)
Max. 100 Lines per record
Soft (Restaurant Style) or Hard (Service Station Style) Check (Account) System
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 15000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
15 Digit PLU Number
5 Modifier Levels
10 Macro keys (with Manager Control Option)
10 Tender Keys
Charge Posting Accounts
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Table Management or Clerk Interrupt
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Power Supply
AC 230V +/- 10%
Power Consumption
25W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
400 x 455 x 266 mm
Weight
13 Kg
