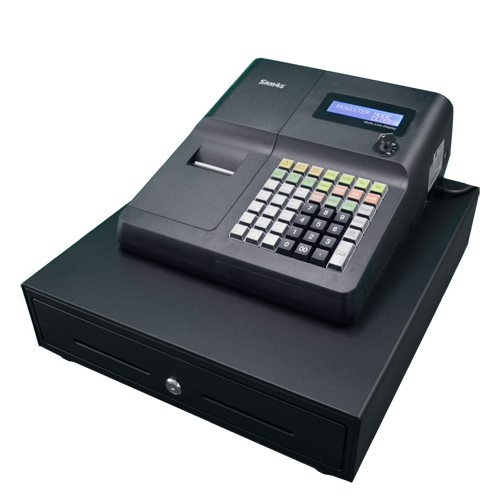

SAM4S ER-260EJ Thermal Single Station Cash Register with Raised Keyboard

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-260 is a basic Cash Register solution for a wide range of smaller retail environments. Basic yet very powerful with many features seen in higher end machines.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured Single Station Cash Register
  • Raised Membrane Keyboard
  • 15 Departments
  • 1000 PLU’s standard, up to 10000
  • Various programmable functions
  • Receipt on - off / Late Receipt
  • Customer Rear Display
  • SMS Style Programming Keyboard
  • Software Utilities
NameSizeDownload
Brochure204kb er260ej_brochure.pdf
User Manual2,527kb ER-260EJ_ume.pdf
USB Virtual Com port driver13kb SAM4S_ECR_USB_VCOM_driver.zip

Products available to purchase

 SKUVendorName
ER260JRALB SAM4SER-260EJ ECR with Raised Keyb & Lrge Cash Dr
JK73-20219A SAM4SKeyboard wet cover (Flat Type) ER265
JK72-20219A SAM4SKeyboard wet cover ER260
CAB-E103PC9 GOODSONCable RJ45 (ECR) to PC DB9F
CAB-E103Ext9M GOODSONCable RJ45 (ECR) to DB9M 2m
CAB-E103PR25 GOODSONCable SPS1000 Com 3-Printer 2m
CAB-USB2AA2 GOODSONUSB 2A to USB 2A Cable 1.8m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 8 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 70.0 mm
Paper Supply Method
Load and feed
Keyboards
49 Key Flat Keyboard
Display
Operator: 16 Char x 2 lines LCD with Blue B/L
Customer: 16 Char x 2 lines LCD with Blue B/L
Drawer
ER265JB: 4B/4C Small Drawer with Media Slot
ER265JRALB: Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (RJ45)
1 xUSB
1 x SD Card
Memory
Program: 2MByte FLASH (CPU Internal)
Data: 4Mbit SRAM Ext Option: 4Mbit SRAM
Memory Protection
90 Days
Memory Configuration
User configurable:
PLUs 1,000 (Max 10,000 [dependant on memory config])
20 Groups (max 99)
10 Clerks (Max 99)
OS Functions
1000 PLU
15 Departments
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
10 Clerks
Currency Convertor
Calculator Function
Max 800 Line Electronic Journal
Automatic Date & Time
Alpha Overlay Programming
Software Utilities
Programming Utility Software
Power Supply
AC 230V +/- 10%
Power Consumption
36.8W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
ER260JB; 325 x 420 x 227 mm
ER260JRALB: 450 x 430 x 245 mm
Weight
ER260JRALB: 10.7 Kg
