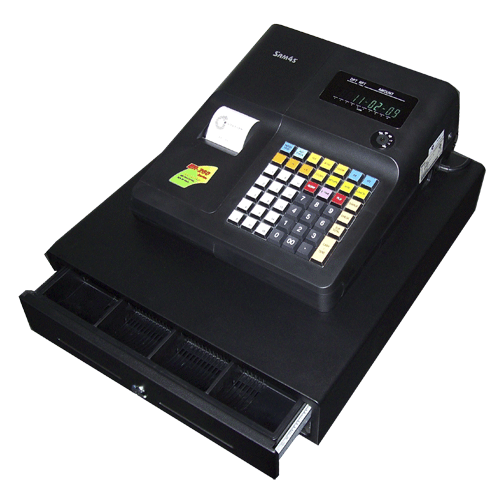

SAM4S ER-260 Thermal Single Station Cash Register **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-260 is a basic Cash Register solution for a wide range of smaller retail environments. Basic yet very powerful with many features seen in higher end machines.Can also be ordered with build in RS232 port for programming functions.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured Single Station Cash Register
  • Raised key Keyboard
  • 15 Departments
  • 1000 PLU’s
  • Various programmable functions
  • Receipt on - off / Late Receipt
  • Customer Rear Display
  • Large Metal Cash Drawer
  • Preset for Australian Settings, inc. GST
  • Alpha Programming Keyboard
  • Software Utilities available only if optional RS232 port is installed
NameSizeDownload
Brochure691kb ER260ALB_brochure.pdf
User Manual4,639kb ER-260_265_AU User Manual.pdf
ER260 Series Key Cap New for EPROM v01.013A and Later81kb ER260KeyCapNew.doc
ER260 Series Key Cap Old for EPROM v1.010 and earlier84kb ER260KeyCapOld.doc

Products available to purchase

 SKUVendorName
EBCA84N SAM4SCash insert Assy (Large Metal Drawer) ERxxx
JK73-20219A SAM4SKeyboard wet cover (Flat Type) ER265
JK72-20219A SAM4SKeyboard wet cover ER260
CAB-E661PC9 GOODSONCable DB9M (ECR) PC DB9 2m
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 8 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 70.0 mm
Paper Supply Method
Load and feed
Keyboards
48 Key Raised Keyboard
Display
Operator: 10 Digit VFD
Customer: 10 Digit VFD
Drawer
ER265B: 4B/4C Small Drawer with Media Slot
ER265RALB: Metal drawer 4B/8C with media Slots
I/O Ports
1 x RS232 (DB9F)
Memory
1Mb Flash ROM
Memory Protection
60 Days
Memory Configuration
N/A
OS Functions
1000 PLU
15 Departments
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
18 Character Description
10 Clerks
Currency Convertor
Calculator Function
Max 800 Line Electronic Journal
Automatic Date & Time
Alpha Overlay Programming
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Power Supply
AC 230V +/- 10%
Power Consumption
25W
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
ER265B;
ER265RALB: 320 x 420 x 227 mm
Weight
ER265B: 7.8 Kg
ER265RALB: 10.7 Kg
