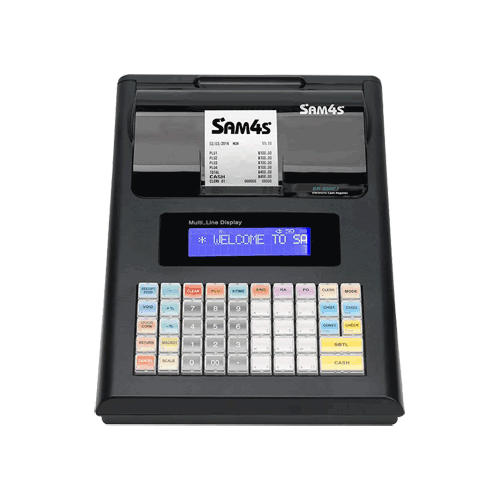

SAM4S ER-230EJ Portable Cash Register black with Battery

(Product may vary from image. Rely only on description for purchasing decisions.)
  • ER230JB
  • ER230JB
  • SAM4S
  • ER230J
    • Login to view pricing and availability

SAM4S ER-230 Portable Thermal 1 Station Cash Register, with Rechargable Battery, 2 RS-232 Ports, SD Card slot

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured Battery Operated Single Station Cash Register
  • High Speed Thermal Printer (57mm paper)
  • Drop in Paper loading
  • 2 x RS232 ports for Scanner, Scale, PC communication or Kitchen/Bar Printer.
  • 16 Digits 2 Line LCD Operator/Customer Display
  • Up to 10000 PLU's
  • Raised 40 Key Keyboard
  • Graphic Logo print
  • Electronic Journal on SD Card
  • 12 Character Description
NameSizeDownload
Brochure215kb er230ej_brochure.pdf
User Manual1,438kb ER230-ume.pdf
Utility Program4,839kb eSpresso_Setup_GSON_V2.0.1_20170804.zip
USB Virtual Com port driver13kb SAM4S_ECR_USB_VCOM_driver.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 10.5 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 50.0 mm
Paper Supply Method
Load and feed
Keyboards
40 Key Raised Keyboard with Key caps
Display
Operator: 16 Char x 2 lines LCD with Blue B/L
Customer: 16 Char x 2 lines LCD with Blue B/L
Drawer
Optional:
Small Drawer 4B/4C
Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (RJ45)
SD Card
2x USB (1x Host & 1x Peripheral)
Memory
ROM: 4MBits Flash ROM
Memory Protection
90 Days
Memory Configuration
up to 3230 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 100 Lines per record
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 12000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
12 Character Description
15 Digit PLU Number
5 Modifier Levels
10 Macro keys (with Manager Control Option)
10 Tender Keys
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Mode Button Password
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Power Supply
AC Adapter 7V/2A
Battery: 2 x 6V 1200mAh
Power Consumption
22.5W Peak
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
225 x 326 x 124 mm
Weight
3.25 Kg
