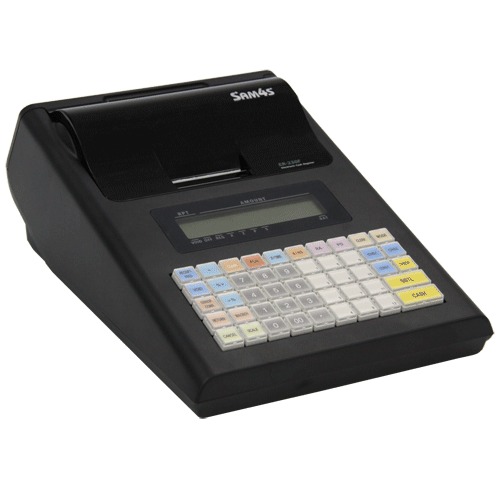

SAM4S ER-230 Portable Thermal Single Station Cash Register **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

The ER-230 is a solution for retail environments requiring mobility. With it's light weight and ability to run on 240v or its pair of internal batteries (8 hours operation), it is well suit for a retail store needing a check out counter anywhere it goes. Markets, roadside stall, and general retail. Optional cash drawer. Add scanning for a very versatile machine.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High featured Battery Operated Single Station Cash Register
  • High Speed (10.5 LPS) Thermal Printer (57mm paper)
  • Drop in Paper loading
  • 2 x RS232 ports for Scanner, Scale, PC communication or Kitchen/Bar Printer.
  • 12 Digits LCD Operator/Customer Display
  • Up to 5000 PLU's
  • Raised 48 Key Keyboard
  • Graphic Logo print
  • Electronic Journal up to 12000 lines
  • 12 Character Description
NameSizeDownload
Brochure1,626kb er230_brochure.pdf
User Manual830kb ER-230_AU User Manual.pdf
Keyboard Layout96kb ER230KeyCap.doc
PC Utility for ER230 (Flashrom Version 1.008 and greater)539kb ER230_PC_Utility_v1.009.zip
PC Utility for ER230 (Flashrom Version 1.007 and lower)538kb ER230_PC_Utility_v1008.zip

Products available to purchase

 SKUVendorName
ER230LCDR SAM4SLarge Cash Drawer 6V for ER230
ER230BATT SAM4SRechargeable Battery for the ER230
ER230SCDR SAM4SSmall Cash Drawer 6V for ER230
CAB-E103PC9 GOODSONCable RJ45 (ECR) to PC DB9F
AD7V20PR GOODSONPlug Pack 7V 2A right angle 2.1 C+ for ER180 230
CAB-ER230DB9M GOODSONRJ45 to DB9M Scanner Converter Cable for ER230
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 10.5 Lines/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 50.0 mm
Paper Supply Method
Load and feed
Keyboards
48 Key Raised Keyboard with Key caps
Display
Operator: 12 Digit LCD with Backlight
Customer: 12 Digit LCD with Backlight
Drawer
Optional:
Small Drawer 4B/4C
Metal drawer 4B/8C with media Slots
I/O Ports
2 x RS232 (RJ45)
Memory
ROM: 4MBits Flash ROM
Memory Protection
180 Days
Memory Configuration
up to 5000 PLU's
Max. 99 Clerks
Max. 99 Groups
Max. 100 Lines per record
Max. 2 Price Levels
Max. 99 Mix & Match
Max. 12000 Line Electronic Journal
(Maximums depends on Memory sharing choices)
OS Functions
32 Character per Line Logo Description (6 Lines Heading + 6 Lines Footing)
12 Character Description
15 Digit PLU Number
5 Modifier Levels
10 Macro keys (with Manager Control Option)
10 Tender Keys
Max. 4 Currency Conversion
Inventory Item
Condiment Item
Training Mode
6 Digit Clerk Password
Graphic Logo on the Receipt Heading and Footing
Maximum 100 Line Record per Transaction
Mode Button Password
Software Utilities
Programming Utility Software, ASCII converter for PC comm's
Power Supply
AC Adapter 7V/2A
Battery: 2 x 6V 1200mAh
Power Consumption
11W Peak
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
225 x 326 x 124 mm
Weight
3.25 Kg
