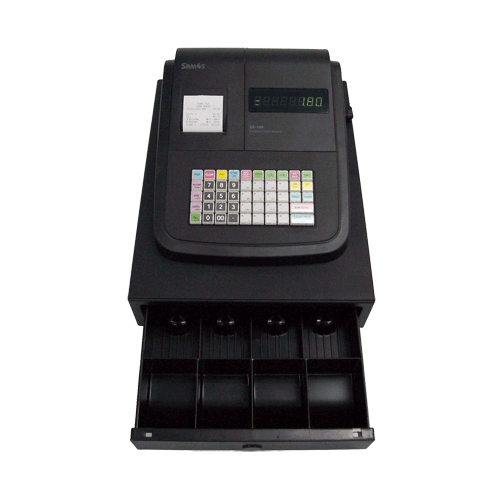

SAM4S ER-180U Single Station Basic Thermal Cash Register

(Product may vary from image. Rely only on description for purchasing decisions.)

The SAM4S ER-180U is a cost effective basic Cash register with a Thermal Printer. It has a small footprint and reliable printer. Good for back up machine in case your main machine breaks down!

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Single Station Cash Register.
  • Direct Thermal Printer
  • 16 Department
  • Available with Compact or large Cash Drawer
  • Receipt on/off function
  • Improved Large Numeric front display
  • Low cost unit
NameSizeDownload
Brochure282kb er180u_Brochure.pdf
Quick Setup Guide571kb ER180U Quick Setup Guide.pdf
User Manual1,836kb ER-180U_ume.pdf
Keyboard Layout175kb ER180TKeyCap.doc
ER180U Key Caps95kb ER180UKeyCap.doc

Products available to purchase

 SKUVendorName
ER180UDL SAM4SER-180U Basic Cash Register with Th Pr Large Drawer
ER180U SAM4SER-180U Basic Cash Register with Th Pr Small Drawer
AD7V20PR GOODSONPlug Pack 7V 2A right angle 2.1 C+ for ER180 230
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 65 mm/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 70.0 mm
Paper Supply Method
Load and feed
Keyboards
48 Key Raised Keyboard /w Keycaps
Display
Operator: 8 Digit LED, 7 Segment
Customer: 8 Digit LED, 7 Segment
Drawer
ER180U: 4B/4C Small Drawer
ER180UDL: Metal drawer 4B/8C with media Slots
I/O Ports
1 x RS232 Internal for firmware upload only
Memory
Program Memory: 256KByte FLASH (CPU Internal)
Data: 96 KByte Serial EEPROM
Memory Protection
90 Days
Memory Configuration
N/A
OS Functions
500 PLU
16 Keyboard Departments
12 Character Description
10 Clerks
Software Utilities
N/A
Power Supply
Adapter DC 7.5V/2.5A
Power Consumption
N/A
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
ER180U; 325 x 420 x 201
ER180UDL: 400 x 450 x 215 mm
Weight
ER180U: 3.8 Kg
ER180UDL: 8.1 Kg
