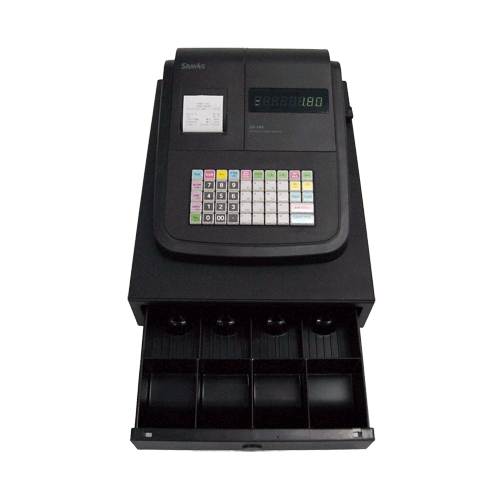

SAM4S ER-180U Basic Cash Register with Th Pr Small Drawer

(Product may vary from image. Rely only on description for purchasing decisions.)
  • ER180U
  • ER-180UB(GOOD)
  • SAM4S
  • ER180U
    • Login to view pricing and availability

SAM4S ER-180U Cash Register /w Removable Keycaps, Thermal Printer, take up motor/spool and Rear Display on small drawer

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Single Station Cash Register.
  • Direct Thermal Printer
  • 16 Department
  • Available with Compact or large Cash Drawer
  • Receipt on/off function
  • Improved Large Numeric front display
  • Low cost unit
NameSizeDownload
Brochure282kb er180u_Brochure.pdf
Quick Setup Guide571kb ER180U Quick Setup Guide.pdf
User Manual1,836kb ER-180U_ume.pdf
Keyboard Layout175kb ER180TKeyCap.doc
ER180U Key Caps95kb ER180UKeyCap.doc

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printer
1 Station Direct Thermal Type
Printing Speed (Max.)
up to 65 mm/sec
Paper Width
57 mm +/- 0.5 mm
Paper Roll Diameter
Max Ø 70.0 mm
Paper Supply Method
Load and feed
Keyboards
48 Key Raised Keyboard /w Keycaps
Display
Operator: 8 Digit LED, 7 Segment
Customer: 8 Digit LED, 7 Segment
Drawer
ER180U: 4B/4C Small Drawer
ER180UDL: Metal drawer 4B/8C with media Slots
I/O Ports
1 x RS232 Internal for firmware upload only
Memory
Program Memory: 256KByte FLASH (CPU Internal)
Data: 96 KByte Serial EEPROM
Memory Protection
90 Days
Memory Configuration
N/A
OS Functions
500 PLU
16 Keyboard Departments
12 Character Description
10 Clerks
Software Utilities
N/A
Power Supply
Adapter DC 7.5V/2.5A
Power Consumption
N/A
EMC/Safety Standards
CE, FCC, UL, TUV, GS, C-tick
External Dimensions (WxDxH)
ER180U; 325 x 420 x 201
ER180UDL: 400 x 450 x 215 mm
Weight
ER180U: 3.8 Kg
ER180UDL: 8.1 Kg
