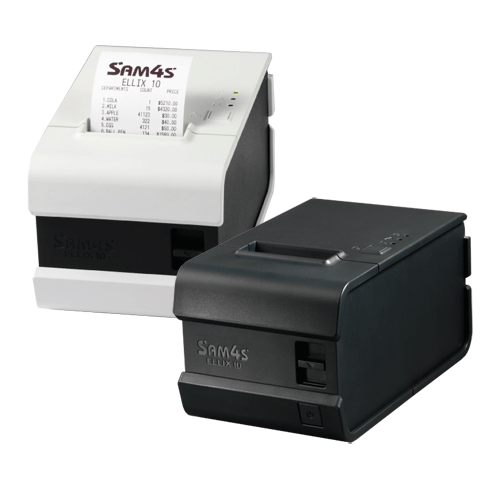

SAM4S ELLIX-10 Thermal POS Printer Series **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

The SAM4S Ellix-10 Thermal docket printer fits perfectly with the modular ER-600 System Cash Register. It is a fast 2 inch thermal printer with easy drop in Paper loading.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • High Speed (up to 75 mm/sec) Direct Thermal Printing
  • Drop in Paper loading
  • Barcode Printing
  • Compatibility (ESC/POS)
  • NV Memory for Bit map Data Storage
  • Auto cutter (optional)
  • User-changeable interface
  • External Power Supply
  • Available in Ivory/Black or Black
NameSizeDownload
Brochure892kb Ellix1020(ENG)_brochure.pdf
User Manual917kb ellix10_um_eng_std.pdf
Windows Driver6,962kb Ellix_10_WindowsDriver.zip
Virtual COM Driver7,216kb EllixAllVirtualComPortDriver.zip
Ethernet Utility2,380kb Sam4s_Ethernet_configuration.zip

Products available to purchase

 SKUVendorName
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5745 GOODSONThermal 57x45 Rolls 50 per Box Bx50
T5757 GOODSONThermal 57x57 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line thermal dot print method
Printing Width
48 mm
Dot Pitch
200 dpi
Printing Speed (Max.)
Max. 75 mm/sec
Number of Columns
Font A - 32 columns, Font B - 42 columns
Character Size
Font A:1.69 ×3.38 mm (12 x 24 Dots)
Font B:1.26 ×2.39 mm (9 x 17 Dots)
Character Table/Code Pages
95 Alphanumeric, 37 International,128*11 Graphic ,Korean
Bar-code Type
UPC-A, UPC-E, EAN8, EAN13, Code 39, Code 93, Code 128, ITF, CODABAR
Line Spacing
N/A
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
58 mm+0/-1
Paper Roll Diameter
Max Ø 70.0mm
Paper Thickness
0.06 - 0.08mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Optional Guillotine Type(Jamfree)
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Star
Print Buffer
4KB
NV Memory
N/A
Sensors
Paper end Sensor
Printer Cover open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB
or RS232
or USB & RS232
Driver available
Windows 98/ 2000/ XP/ Vista/ 7/ 8, 2003 Server Driver, OPOS Driver
Software Utilities
Power Supply
External AC Adapter
Rated input: AC 90 to 264 V, 50/60 Hz
Rated output: DC24 V, 2.5 A
Power Consumption
Max. 60W
External Dimensions (WxDxH)
118 × 200 × 111 mm
Weight
1.2 Kg
Operating Environment
5-45 °C, 10-90% RH
Storage Environment
-10-50 °C, 10-90% RH
Reliability
MCBF Mechanism: 30 mil Lines
Thermal Print head: 50Km
Auto Cutter: 1.0 Mil cuts
EMC/Safety Standards
C-Tick, RCM, FCC class A, TUV/GS, CE, CB, cTUVus. R0HS, WEEE
