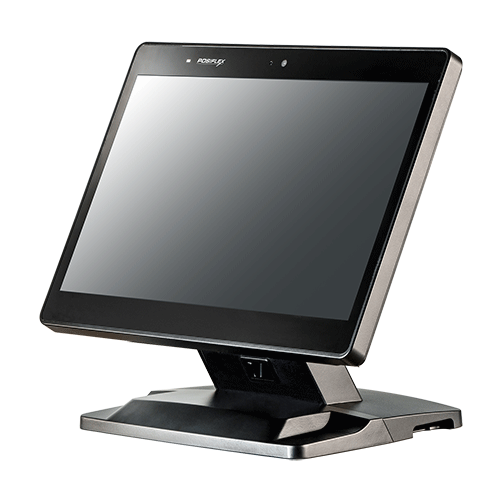

POSIFLEX ZT-3715C Slimline Fan free POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

ZT Series POS Terminal features innovative industry-first clamshell design that increases maintenance effectiveness by four times and redefines the traditional mechanical form factor with a smarter design. Furthermore, with Fan-free cooling design, hidden I/O, hidden power adapter and three-way cable management to achieve easy maintenance and better security while offering ultra-slim and sleek aesthetics.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slimline 15" Fanless Touch POS Terminal
  • Industry-first clamshell design for easy Maintenance
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Intel Tiger Lake Core i5-1155G7, up to 4.50 GHz, 8M Cache
  • DDR4 Memory up to 64G
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10.1" LCD Customer display mounted
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
PFZT37155C-16MTMC POSIFLEXZT-3715 Core i5C 16GB 128 512GB M.2 SSD MSR TM5011
PFZT37155C-16512S21 POSIFLEXZT-3715 Core i5C 16GB 512GB M.2 SSD WIN10 C 2021
PFZT37155C-80128S21 POSIFLEXZT-3715 Core i5C 8GB 128GB M.2 SSD WIN10 C 2021
PFZT37155C-80512S21 POSIFLEXZT-3715 Core i5C 8GB 512GB M.2 SSD WIN10 C 2021
PFZT37155E1C-80128S24 POSIFLEXZT-3715E1 Core i5C 8GB 128GB M.2 SSD Win 11
PFTM5011-ZT2D POSIFLEX10.1" Customer Tch Display with 2D Sc eDP IF for ZT
PFTM5011-ZT POSIFLEX10.1" Customer Touch Display with eDP interface for ZT
PFZA101B3-U POSIFLEXMSR attachment 3 Track USB for ZT Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Tiger Lake Core i5-1155G7, up to 4.50 GHz, 8M Cache
Memory
DDR4, SO-DIMM socket x 2, max 64 GB, default 8 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SATA SSD, can also be purchased with larger SSD Drives
2nd M.2 Slot available
Display
15" TFT LED Backlit LCD Display
Resolution
ZT-3715: 1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
2 x RS-232 Ports (1 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
5 x USB Ports (2 x USB3.0/2.0 3 x USB2.0)
1 x 10/100/1000Mb Ethernet Port
1 x Proprietory Display Port or USB Type C for 2nd Display
1 x M.2 2230 for Wi-Fi/BT
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Audio
internal 1 x 2W Speaker
OS Support
Windows 10 IoT
Environmental Sealing
IP65 to front screen
Operating Environment
0°C - 40°C, 20%RH - 90%RH
Storage Environment
-20°C - 70°C, 10%RH - 90%RH
Power Supply
Standard Version 24V DC Power Adapter (60W)
(Optional 80W when using with 2nd Display)
External Dimensions (WxDxH)
3715x: 353mm x 206mm x 319mm
Weight
3715: 4.9 Kg
