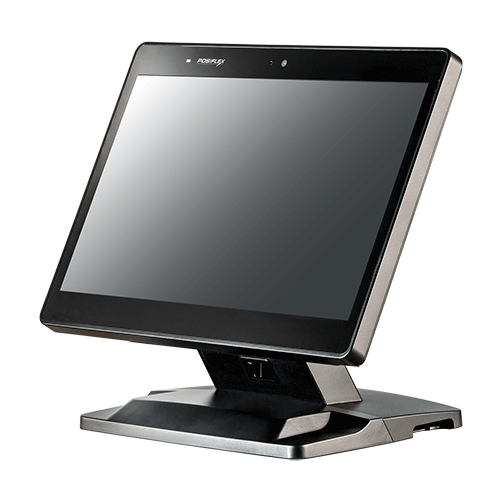

POSIFLEX ZT-3715 3716 Slimline Fan free POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

ZT Series POS Terminal features innovative industry-first clamshell design that increases maintenance effectiveness by four times and redefines the traditional mechanical form factor with a smarter design. Furthermore, with Fan-free cooling design, hidden I/O, hidden power adapter and three-way cable management to achieve easy maintenance and better security while offering ultra-slim and sleek aesthetics.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Slimline 15" or 15.6" Fanless Touch POS Terminal
  • Industry-first clamshell design for easy Maintenance
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution, 15.6" LCD 1920 x 1080 resolution
  • Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache
  • Factory upgrades available to i5 or i7
  • DDR4 Memory
  • Fan-free design boasting quiet and anti-dust features
  • Clean Cable management
  • Aluminium die-cast main housing design for efficient cooling
  • Can be shipped with 10.1" LCD Customer display mounted
NameSizeDownload
Brochure669kb zt3715_6_3715e_6e_brochure.pdf

Products available to purchase

 SKUVendorName
PFZT37155-16128S21 POSIFLEXZT-3715 Core i5 16GB 128GB M.2 SSD WIN10 C 2021
PFTM5011-ZT2D POSIFLEX10.1" Customer Tch Display with 2D Sc eDP IF for ZT
PFTM5011-ZT POSIFLEX10.1" Customer Touch Display with eDP interface for ZT
PFZA101B3-U POSIFLEXMSR attachment 3 Track USB for ZT Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
371x3: Intel Tiger Lake UP3 Core i3-1115G4E, up to 3.90 GHz, 6M Cache
371x5: Intel Tiger Lake UP3 Core i5-1145G7E, up to 4.10 GHz, 8M Cache
371x7: Intel Tiger Lake UP3 Core i7-1185G7E, up to 4.40 GHz, 12M Cache
Memory
DDR4, SO-DIMM socket x 2, max 64 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SATA SSD, can also be purchased with larger SSD Drives
2nd M.2 Slot available
Display
ZT3715: 15" TFT LED Backlit LCD Display
ZT3716: 15.6" TFT LED Backlit LCD Display
Resolution
ZT-3715: 1024 x 768
ZT-3716: 1920 x 1080
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
2 x RS-232 Ports (1 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
5 x USB Ports (2 x USB3.0/2.0 3 x USB2.0)
1 x 10/100/1000Mb Ethernet Port
1 x Proprietory Display Port or USB Type C for 2nd Display
1 x M.2 2230 for Wi-Fi/BT
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)

ZT371xE version has 1 x 24V Powered USB Port
Audio
internal 1 x 2W Speaker
OS Support
Windows 10 IoT
Environmental Sealing
IP65 to front screen
Operating Environment
0°C - 40°C, 20%RH - 90%RH
Storage Environment
-20°C - 70°C, 10%RH - 90%RH
Power Supply
Standard Version 24V DC Power Adapter (60W)
(Optional 80W when using with 2nd Display)

E Version comes with 24V DC Power Adapter (120W)
External Dimensions (WxDxH)
3715x: 353mm x 206mm x 319mm
3716x: 376mm x 206mm x 304mm
Weight
3715: 4.9 Kg
3716: 4.5 Kg
