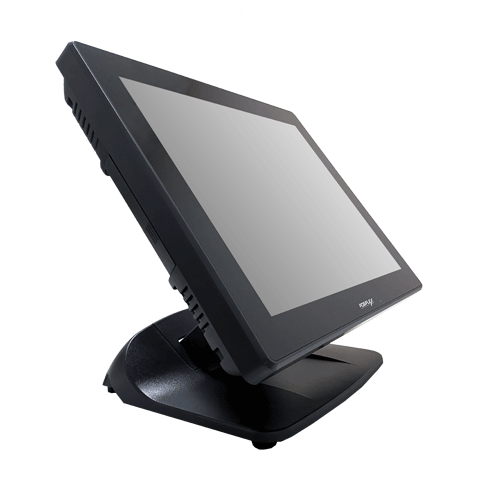

POSIFLEX XT-6015C Fanfree 15" POS Touch Terminl Series

(Product may vary from image. Rely only on description for purchasing decisions.)

In today’s retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.With the true-flat PCAP touch screen supporting 10 points multi-touch, beautifully sculptured slim body, nicely curved base stand, Posiflex XT-6015C looks right at home at any elegantly decorated store. And more than just good looks, Posiflex XT-6015C is powerful enough to handle any task imaginable that comes its way.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan-free Design
  • Projective Capacity Multi Touch (PCAP True Flat)
  • Intel Skylake core-i5 CPU
  • New GEN7E foldable base that allows XT Series to be configured into different configurations
  • Optional GEN8E foldable base that integrates internal power adaptor and optional Powered USB ports into the base stand
  • M.2 expansion slot
NameSizeDownload
Brochure2,815kb xt6015c_brochure.pdf

Products available to purchase

 SKUVendorName
PFXT60155B80-80128M221 POSIFLEXXT-6015 i5 8GB 128GB M2 SSD 80W PS IoT 64 bit 2021
PFLM3014BF POSIFLEX14" Bezelfree Customer LCD Monitor for XT-series
PFLM3015BF POSIFLEX15" Bezelfree Customer LCD Monitor for XT-series
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
PFKP560B-U POSIFLEX36 key dynakey with keylock attachment for XT Ser
PFLM3010BF POSIFLEX9.7" Customer LCD Display (VGA) Blk for XT Series
PFTM3010CB POSIFLEX9.7" LCD PCAP Touch Customer Display for XT-Series
PFPU490EXT POSIFLEXExternal Box with 1x24V & 3 x 12V Powered USB no PS
PFGEN7 POSIFLEXGen 7E Base for XT series (VESA)
PFSA305B3FP-U POSIFLEXMSR attach 3 Trck with FingerPrint Reader for XT
PFSA305B3RF31FP-U POSIFLEXMSR attach 3 Trck with RF310 & FingerPr Rdr for XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for XT3015 4015
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for XT3015 4015
PFPD2608B-U POSIFLEXPD-2608B Rear Mount 2 x 20 VFD Display USB for XT
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
PFTM3015CB POSIFLEXRear Mnt 15" Customer PCAP Tch LCD Displ for XT
PFPD350B-U POSIFLEXRear Mount 2x20 LCD Cust Displ USB for XT Series
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex
PFWB5000 POSIFLEXWall Mounting Kit for XT-Series & LM\TM3xxx Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Skylake Core i5-6360U up to 3.1GHz 4M Cache
Memory
DDR4, SO-DIMM socket x 1, max 16 GB, default 8 GB
Storage device(s)
In Australia Standard with M.2 SATA 128 GB SSD, can also be purchased with larger SSD Drives
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: True Flat Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
3 x RS-232 Ports 10 pin RJ50 on I.O Plate with 5V/12V Support
5 x USB Ports (USB3.0 x 3, USB2.0 x 3)
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x M.2 internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
Optional powered USB Ports, 1 x 24V and 3 x 12V via GEN8e Base
Audio
2W Speaker Internal x 1
OS Support
Windows 10 IoT 64 Bit / WIndows Embedded 8.1 Industry 64 bit / Windows 7 / POSReady 7
Environmental Sealing
IP65 to Front Panel
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V / 60W DC Power Adapter
Optional 84W when equiped with 2nd Display
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
372mm x 320mm x 252.7mm
Weight
5.86 Kg
