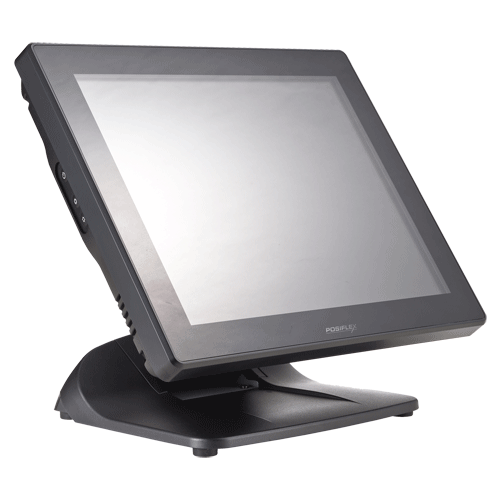

POSIFLEX XT-5315 Fanfree 15" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

In today’s retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.With the true-flat PCAP touch screen supporting 10 points multi-touch, beautifully sculptured slim body, nicely curved base stand, Posiflex JIVA XT-5315 looks right at home at any elegantly decorated store. And more than just good looks, Posiflex JIVA XT-5315 is powerful enough to handle any task imaginable that comes its way.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Fan-free Design
  • Projective Capacity Touch
  • Intel 4th generation Haswell CPU
  • New GEN7E foldable base that allows JIVA XT Series to be configured into different configurations
  • New GEN8E foldable base that integrates internal power adaptor and Powered USB port into the base stand
  • Mini-PCIe expansion slot
  • Dual LAN ports
NameSizeDownload
Brochure1,851kb xt5315-5515_brochure.pdf
User Manual1,275kb XT5315-5515_ume.pdf

Products available to purchase

 SKUVendorName
PFLM3014BF POSIFLEX14" Bezelfree Customer LCD Monitor for XT-series
PFLM3015BF POSIFLEX15" Bezelfree Customer LCD Monitor for XT-series
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
PFKP560B-U POSIFLEX36 key dynakey with keylock attachment for XT Ser
PFLM3010BF POSIFLEX9.7" Customer LCD Display (VGA) Blk for PS & XT
PFTM3010CB POSIFLEX9.7" LCD PCAP Touch Customer Display for XT-Series
PFPU490EXT POSIFLEXExternal Box with 1x24V & 3 x 12V Powered USB no PS
PFGEN7 POSIFLEXGen 7E Base for XT series (VESA)
PFSA305B3FP-U POSIFLEXMSR attach 3 Trck with FingerPrint Reader for XT
PFSA305B3RF31FP-U POSIFLEXMSR attach 3 Trck with RF310 & FingerPr Rdr for XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for XT3015 4015
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for XT3015 4015
CAB-PFKS72PAR POSIFLEXParallel Port Cable for KS68 69 72 Series
PFPD2608B-U POSIFLEXPD-2608B Rear Mount 2 x 20 VFD Display USB for XT
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System
PFTM3015CB POSIFLEXRear Mnt 15" Customer PCAP Tch LCD Displ for XT
PFPD350B-U POSIFLEXRear Mount 2x20 LCD Cust Displ USB for XT Series
PFRB2000 POSIFLEXRechargeable Battery pack for Mach's with UPS port
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex
PFWB5000 POSIFLEXWall Mounting Kit for XT-Series & LM\TM3xxx Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel G1820 - 2.7GHz. 2M Cache
Can also be purchased with i3
Memory
DDR3 1333 MHz, SO-DIMM socket x 2, max 16 GB, default 4 GB
Storage device(s)
In Australia Standard with 64 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display
15" TFT LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
6 x RS-232 Ports (2 x DB9, 2 x RJ50 on I.O plate)pin header x 2 from service window, with 5V/12V Support
6 x Standard USB Ports
2 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x mini-PCIe slot internal expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional 1 x Parallel port with Proprietory cable
Optional powered USB Ports 1 x 24V and 3 x 12V via GEN8e Base
Audio
2W Speaker internal x 1 + Line Out
OS Support
Windows 7 / POSReady 7 / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
372mm x 320mm x 252.7mm
Weight
5.86 Kg
