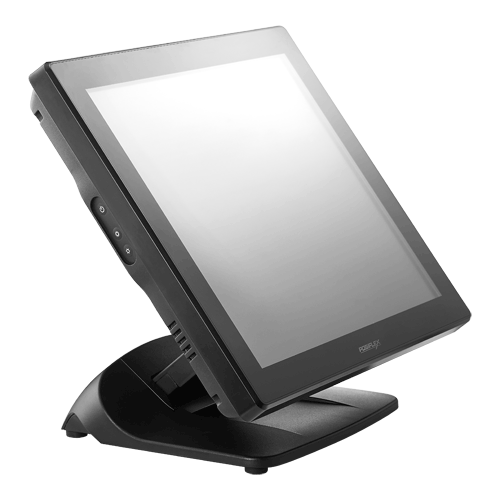

POSIFLEX XT-3817 G2 Fanfree 17" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The XT-3817 G2 series is the next Generation of the popular XT-3817 platform. Powered by Intel processor Elkhart Lake, the XT-3817-G2 features a 17" bezel-free true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3817-G2 looks right at home at any elegantly decorated store. And more than just good looks, the XT-3817-G2 also offers ample performance and flexibility to satisfy the most demanding of daily POS operations.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 17" LCD 1280 x 1024 resolution
  • Spill-resistant design to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel Elkhart Lake J6412 CPU, up to 2.4GHz, 1.5 M Cache and DDR4 memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules
NameSizeDownload
Brochure5,119kb xt3817g2_brochure.pdf

Products available to purchase

 SKUVendorName
PFXT3817G-40128S21 POSIFLEXXT3817G2 J6412 Q Core 4G 120G SSD PCAP IoT 2021
PFXT3817G-80128S21 POSIFLEXXT3817G2 J6412 Q Core 8G 120G SSD PCAP IoT 2021
PFLM3014BF POSIFLEX14" Bezelfree Customer LCD Monitor for XT-series
PFLM3015BF POSIFLEX15" Bezelfree Customer LCD Monitor for XT-series
PFLM3010BF POSIFLEX9.7" Customer LCD Display (VGA) Blk for PS & XT
PFTM3010CB POSIFLEX9.7" LCD PCAP Touch Customer Display for XT-Series
PFPU490EXT POSIFLEXExternal Box with 1x24V & 3 x 12V Powered USB no PS
PFGEN7 POSIFLEXGen 7E Base for XT series (VESA)
PFSA305B3FP-U POSIFLEXMSR attach 3 Trck with FingerPrint Reader for PS XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for PS XT
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for PS XT
PFPD2608B-U POSIFLEXPD-2608B Rear Mount 2 x 20 VFD Display USB for XT
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System
PFPD350B-U POSIFLEXRear Mount 2x20 LCD Cust Displ USB for XT Series
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® Elhart Lake Quad Core Celeron™ J6412 / 2.0 GHz ~ 2.60GHz / 1.5 MB L2 Cache
Memory
DDR4 SO-DIMM x 2, max 32 GB, default 4 GB
Storage device(s)
In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
17" TFT LED Backlit LCD Display
Resolution
1280 x 1024
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
7 x USB Ports (3 x USB3.0/2.0, 4 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x M.2 expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Audio
2W Speaker
OS Support
Windows 10 IoT 64 Bit / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 20 ~ 90% RH
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (84W)
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
404mm x 355mm x 251mm
Weight
7.2 Kg
