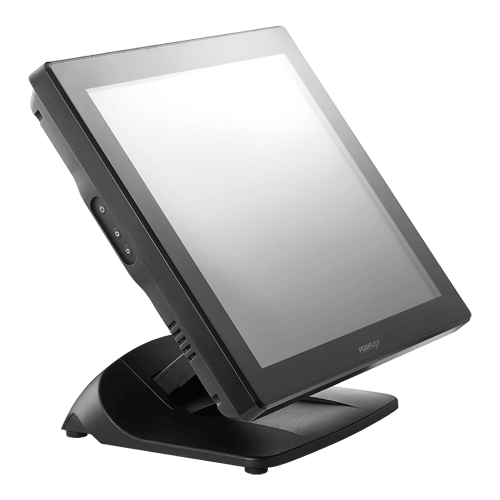

POSIFLEX XT-3817 Fanfree 17" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

In today’s retail and hospitality market, POS terminal is no longer just a cold and hard business tool. It is a part of the store decoration, a part of the store image. Each curve and detail of the POS terminal should add something to the overall mood of the store, to lift the shopping experience of the customers.With a bezel free touch screen, large 17" display, beautifully sculptured slim body, sexily curved base stand, XT-3817 looks right at home at any elegantly decorated store. And more than just good looks, XT-3817 also offers ample of performance and flexibility to satisfy the most demanding of daily POS operations.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 17" LCD 1280 x 1024 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel J1900 Quad Core CPU up to 2.42 GHz 2M Cache and DDR3L memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base (Patent pending)
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules
NameSizeDownload
Brochure740kb xt3817_brochure.pdf

Products available to purchase

 SKUVendorName
PFXT3817CB-40128SD POSIFLEXXT3817 J1900 4G 120G SSD PCAP GEN7 WIN10IoT LTSB
PFXT3817CB-40128SE POSIFLEXXT3817 J1900 4G 120G SSD PCAP GEN7 WIN10IoT LTSC
PFXT3817CB-40128S POSIFLEXXT3817 J1900 Q Core 4G 120G SSD PCAP GEN7 No OS
PFLM3014BF POSIFLEX14" Bezelfree Customer LCD Monitor for XT-series
PFLM3015BF POSIFLEX15" Bezelfree Customer LCD Monitor for XT-series
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
PFKP560B-U POSIFLEX36 key dynakey with keylock attachment for XT Ser
PFLM3010BF POSIFLEX9.7" Customer LCD Display (VGA) Blk for XT Series
PFTM3010CB POSIFLEX9.7" LCD PCAP Touch Customer Display for XT-Series
PFGEN7 POSIFLEXGen 7E Base for XT series (VESA)
PFSA305B3FP-U POSIFLEXMSR attach 3 Trck with FingerPrint Reader for XT
PFSA305B3RF31FP-U POSIFLEXMSR attach 3 Trck with RF310 & FingerPr Rdr for XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for XT3015 4015
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for XT3015 4015
CAB-PFKS72PAR POSIFLEXParallel Port Cable for KS68 69 72 Series
PFPD2608B-U POSIFLEXPD-2608B Rear Mount 2 x 20 VFD Display USB for XT
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System
PFTM3015CB POSIFLEXRear Mnt 15" Customer PCAP Tch LCD Displ for XT
PFPD350B-U POSIFLEXRear Mount 2x20 LCD Cust Displ USB for XT Series
PFRB2000 POSIFLEXRechargeable Battery pack for Mach's with UPS port
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex
PFWB5000 POSIFLEXWall Mounting Kit for XT-Series & LM\TM3xxx Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
KS7217POSIFLEX KS-7217 17" Touch POS Terminal

Parts documents

Parts layout details

Specifications
CPU
Intel® Bay Trail Quad Core Celeron™ J1900 / 2.0 GHz ~ 2.42 GHz
Memory
DDR3L 800 MHz, SO-DIMM socket x 1, max 8 GB, default 2 GB
Storage device(s)
In Australia Standard with 64 GB SSD, can also be purchased with a 500 GB SATA HDD (Special Order) or larger SSD Drives
Display
17" TFT LED Backlit LCD Display
Resolution
1280 x 1024
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
6 x USB Ports (1 x USB3.0/2.0 6 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x Parallel Port through service window (Optional Proprietary Cable)
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Mini-PCIe slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
1 x
Audio
2W Speaker
OS Support
Windows 7 / POSReady 7 / WIN8.1 Embedded Retail Industry / Linux per request
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (80W)
(Optional 120W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
404.5mm x 355mm x 251mm
Weight
6.2 Kg
