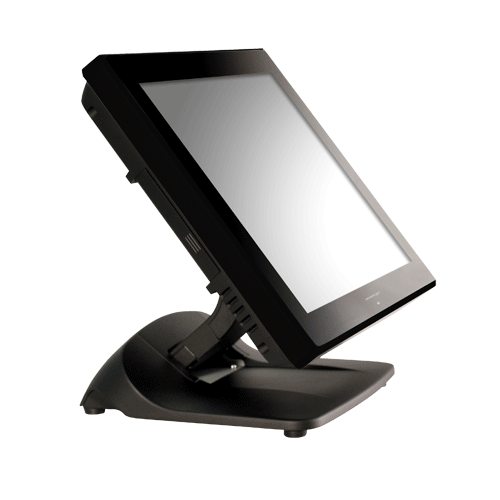

POSIFLEX XT-3815 G2 Fanfree 15" POS Touch Terminal Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The XT-3815 G2 series is the next Generation of the popular XT-3815 platform. Powered by Intel processor Elkhart Lake, the XT-3815-G2 features a 15" bezel-free true-flat PCAP touch screen, beautifully sculptured slim body, and sexily curved base stand, the XT-3815-G2 looks right at home at any elegantly decorated store. And more than just good looks, the XT-3815-G2 also offers ample performance and flexibility to satisfy the most demanding of daily POS operations.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • PC POS Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 15" LCD 1024 x 768 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel Elkhart Lake J6412 CPU, up to 2.4GHz, 1.5 M Cache and DDR4 memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base
  • Optional Gen 8 slim base, which can have build in Power supply and Powered USB Modules
NameSizeDownload
Brochure631kb xt3815g2_brochure.pdf

Products available to purchase

 SKUVendorName
PFXT3815G2-40128M221 POSIFLEXXT3815G2 J6412 Q Core 4G 120G SSD PCAP IoT 2021
PFXT3815G2-40128M2 POSIFLEXXT3815G2 J6412 Q Core 4G 120G SSD PCAP no OS
PFXT3815G2-40128M2E POSIFLEXXT3815G2 J6412 Q Core 4G 120G SSD PCAP WIN IoT 64C
PFLM3014BF POSIFLEX14" Bezelfree Customer LCD Monitor for XT-series
PFLM3015BF POSIFLEX15" Bezelfree Customer LCD Monitor for XT-series
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
PFKP560B-U POSIFLEX36 key dynakey with keylock attachment for XT Ser
PFLM3010BF POSIFLEX9.7" Customer LCD Display (VGA) Blk for XT Series
PFTM3010CB POSIFLEX9.7" LCD PCAP Touch Customer Display for XT-Series
PFPU490EXT POSIFLEXExternal Box with 1x24V & 3 x 12V Powered USB no PS
PFGEN7 POSIFLEXGen 7E Base for XT series (VESA)
PFSA305B3FP-U POSIFLEXMSR attach 3 Trck with FingerPrint Reader for XT
PFSA305B3RF31FP-U POSIFLEXMSR attach 3 Trck with RF310 & FingerPr Rdr for XT
PFSA105B3-U POSIFLEXMSR attachment 3 Track for XT3015 4015
PFSA305B3RF31-U POSIFLEXMSR attachment 3 Track with RF310 for XT3015 4015
CAB-PFKS72PAR POSIFLEXParallel Port Cable for KS68 69 72 Series
PFPD2608B-U POSIFLEXPD-2608B Rear Mount 2 x 20 VFD Display USB for XT
AD-PF12VR150W4P POSIFLEXPower Adaptor 12V 150W for Posiflex Systems
AD-PF12VR60W4P POSIFLEXPower Adaptor 12V 60W for Posiflex System
AD-PF12VR80W4P POSIFLEXPower Adaptor 12V 80W for Posiflex System
PFTM3015CB POSIFLEXRear Mnt 15" Customer PCAP Tch LCD Displ for XT
PFPD350B-U POSIFLEXRear Mount 2x20 LCD Cust Displ USB for XT Series
PFRB2000 POSIFLEXRechargeable Battery pack for Mach's with UPS port
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex
PFWB5000 POSIFLEXWall Mounting Kit for XT-Series & LM\TM3xxx Series

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
XT3015POSIFLEX XT-3015 15" Touch POS Terminal
XT3815Posiflex XT-3815 15" Touch POS System

Parts documents

Parts layout details

Specifications
CPU
Intel® Elhart Lake Quad Core Celeron™ J6412 / 2.0 GHz ~ 2.60GHz / 1.5 MB L2 Cache
Memory
DDR4 SO-DIMM x 2, max 32 GB, default 4 GB
Storage device(s)
In Australia Standard with 128 GB M.2 SSD, can also be purchased with larger SSD Drives
Display
15" TFT LED Backlit LCD Display
Resolution
1024 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Projected Capacitive Touch supporting 10pts multi-touch
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ50) with 5V/12V Support
7 x USB Ports (3 x USB3.0/2.0, 4 x USB2.0)
Optional Powered USB Ports 1 x 24V & 3 x 12V on GEN 8 Base
1 x Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x M.2 expansion slot
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Audio
2W Speaker
OS Support
Windows 10 IoT 64 Bit / Linux per request
Environmental Sealing
IP44
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
(Optional 80W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
372mm x 320mm x 252.7mm
Weight
5.6 Kg
