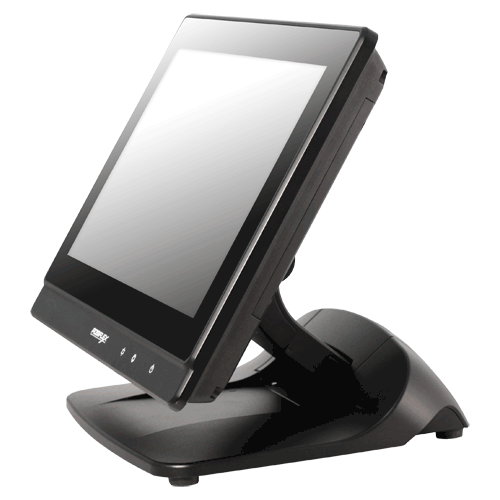

POSIFLEX XT-3114 Fanfree 14" Wide Screen POS Touch Terminal System ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The XT-3114 series is a 14" wide Screen Touch screen System that stands out by its streamlined and patented aluminium die-cast housing design. With Resistive touch screen, optional UPS functions and Spill-resistant and anti-dust features which allow it to operate effectively in harsh environments.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • PC POS Touch System
  • Resistive touch screen
  • 14” LCD 1366 x 768 resolution
  • Spill-resistant design (IP44 capable) to prevent careless spill and provide easy cleaning for a wide range of applications
  • Intel CedarView Dual Core D2550 1.86 GHz CPU 1M Cache and DDR3 memory
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • RAID 1 (Disk Mirroring) support to backup important data (Optional)
  • Push-open cover to protect power switch from accidental shutdown
  • New Gen 7 Slim line Base (Patent pending)
  • ptional Gen 8 slim base, which can have build in Power supply and Powered USB Modules
NameSizeDownload
Brochure1,146kb xt3114b_brochure.pdf
User Manual774kb XT3114_ume.pdf

Products available to purchase

 SKUVendorName
PFLM3014BF POSIFLEX14" Bezelfree Customer LCD Monitor for XT-series
CAB-PFCR24V POSIFLEX24VDC Converter for KS XT Cash drawer port
PFLM3010BF POSIFLEX9.7" Customer LCD Display (VGA) Blk for PS & XT
PFSA104B3-U POSIFLEXMSR attachment 3 Track for XT3114
CAB-PFKS72PAR POSIFLEXParallel Port Cable for KS68 69 72 Series
PFPD2608B-U POSIFLEXPD-2608B Rear Mount 2 x 20 VFD Display USB for XT
PFPD350B-U POSIFLEXRear Mount 2x20 LCD Cust Displ USB for XT Series
CAB-PFRJ45DB9M POSIFLEXRJ45 to DB9M RS232 adapter Cable for Posiflex

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel Pine View D525 Dual Core 1.8Ghz CPU / 1M Cache
Memory
DDR3 800 MHz, SO-DIMM socket x 1, max 4 GB, default 2 GB
Storage device(s)
In Australia Standard with 32 GB SSD, can also be purchased with a 320 GB SATA HDD (Special Order) or larger SSD Drives
Display
14" TFT Wide Screen LCD Display
Resolution
1366 x 768
Tilt Angle
15° to 90°
Touch Panel
Bezel Free: Resistive (USB I/F)
I/O Ports
4 x RS-232 Ports (3 x DB9, 1 x 10 pin RJ45) with 5V/12V Support
4 x Standard USB Ports
1 Proprietary USB port for side mount optional devices
1 x 10/100/1000Mb Ethernet Port
1 x VGA Port for 2nd Display (D-Sub with 12V Power for Posiflex LCD Monitors)
1 x Cash Drawer Port (Controls 2 drawers with optional Y-cable)
1 x UPS Port (Battery is optional)
Optional Parallel port with Proprietory cable
Audio
Internal 2W speaker x 1
OS Support
Android 4.4
Environmental Sealing
N/A
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
0 ~ +40 °C, 20 ~ 90% RH with HDD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (40W)
(Optional 60W when equiped with 2nd Display)
External Dimensions (WxDxH)
372mm x 251.8mm x 289.5 mm
Weight
4 Kg
