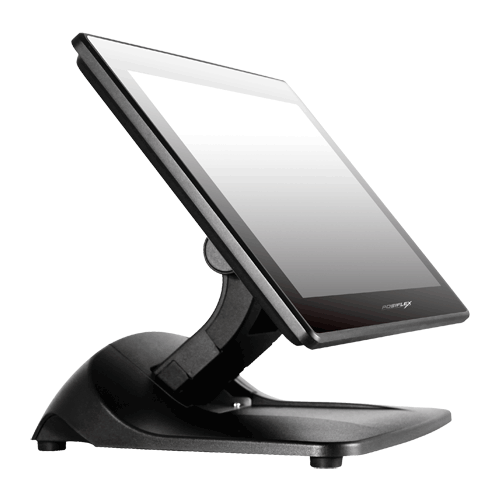

POSIFLEX XT-2614Q 14" Android Touch Terminal with Wifi

(Product may vary from image. Rely only on description for purchasing decisions.)
  • PFXT2614WCB-108FA
  • XT2614PCAP Wifi
  • POSIFLEX
  • XT2614Q
    • Login to view pricing and availability

Fanfree 14" LCD touch PCAP terminal with Android 4.2, 1G DDR-3 memory, 2 x COM, 3 x USB, 1 x LAN, MLC NAND flash 8GB, Factory fitted Wifi Antenna and Module

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • 14" Android Fanless Touch System
  • Projective Capacitive Touch screen (PCAP)
  • 14” LCD 1366 x 768 resolution
  • Fan-free design boasting quiet and anti-dust features
  • Aluminium die-cast housing design for efficient cooling
  • Push-open cover to protect power switch from accidental shutdown
  • Gen 7 Slim line Base
NameSizeDownload
Brochure409kb xt2614q_brochure.pdf
User Manual2,775kb XT-2614E_ume.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Quad Core 1.0GHz
Memory
DDR3 1GB
Storage device(s)
8GB eMMC + Micro SD
Display
14" TFT Wide Screen LCD Display
Resolution
1366 x 768
Tilt Angle
15° to 90°
Touch Panel
True-flat PCAP Touch with multi-touch support (IP65 on front panel)
I/O Ports
2 x DB9 RS232, 5V / 12V support on COM 2
3 x Standard USB Ports
1 x 10/100/1000Mb Ethernet Port
1 x 2nd VGA port (SDK will be provided for software integration)
Audio
2W Speaker
OS Support
Windows XP Pro / POSReady 2009 / Windows 7 32bit / POSReady 7 32bit / Windows Embedded 8.1 Industry 32bit / Linux per request
Environmental Sealing
IP65 to front of the display
Operating Environment
0 ~ +50 °C, 20 ~ 90% RH with SSD
Storage Environment
-20 ~ +70 °C, 10 ~ 90% RH
Power Supply
12V DC Power Adapter (60W)
(Optional 80W when equiped with 2nd Display)
(Optional 150W when equiped with Gen 8 Base with Powered USB I/F)
External Dimensions (WxDxH)
372mm x 251.8mm x 289.5 mm
Weight
3.8 Kg
